Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4mm | Resolution: | 62500dots/sqm |
|---|---|---|---|
| Led Chip: | SMD2121 | Drive IC: | MBI Or Chipone |
| Cabinet Material: | Iron | Power Supply: | G-energy |
| Viewing Distance: | 4-40m | Life Span: | 100,000hours |
| High Light: | indoor LED video wall,indoor full color LED display |
||
HD Iron Cabinet Indoor Fixed LED Display P4 / Simple Housing Led Video Wall
Description
Indoor P4 led display, with 62500dots/sqm resolution makes vivid videos and images visual effection. If for fixed installation, we usually make iron cabinet or simple cabinet without door, it save cost. If for rental use, we usually make die casting aluminum cabinets, it is convenient to install and disassmbly. P4 cabinet standard size is 512mm x 512mm, sometime, to satisfy different size installation environmnet, we also make 768mm x 768mm cabinet.
Features
1, SMD3-in-1 technology are used for indoor LED Display.
2, Wide view angle:140 in horizonal and 120 in vertical.
3, Both front access and rear access are available.
4, Easy for assembleing and connection with the connector added.
5, Special design and advanced SMT technology improves the heat dissipation.
6, With high fresh rate Controller, guarantee that no scan line when taking photos.
7, Regular shape and special shape (such as curve, round) can be designed.
8, High color uniformity and clear image can bring you a vivid audio visual effect.
Competitive Advantages
1, First-class led chip and IC
2, 48 hours aging for modules and led screens
3, 24/7 after-sale service
4, Free technology and operation training
5, Engineer guide install and operate online
Specification
|
Pixel Pitch |
4mm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
| LED Color | Black |
|
Module Size |
256mm x 128mm |
|
Drive Duty |
1/16 Scan |
|
Standard Cabinet Size |
512mm x 512mm |
|
Brightness |
≥1200 cd/sqm |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8, Win10 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
Applications
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies, Banks, insurance companies, post offices, hospital, schools, Movie theaters, clubs, stages etc.

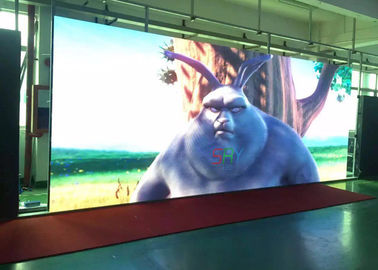

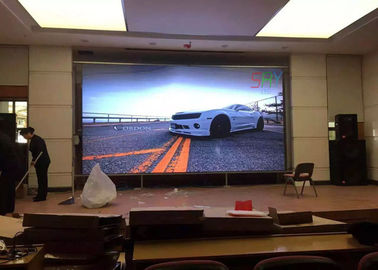

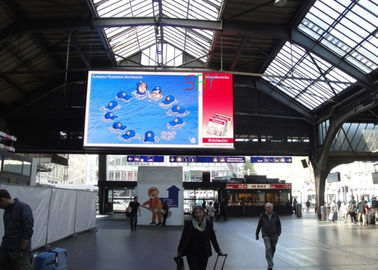

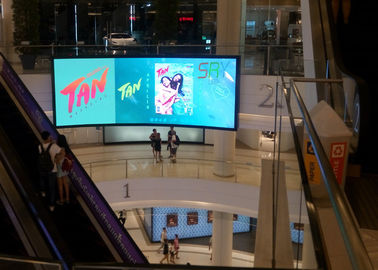

Product Images
