Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC 110V - 220V ± 5%, 50HZ | Warranty: | 2 Full Years |
|---|---|---|---|
| Cabinet Material: | Stainless Steel | Lifespan: | 100,000hours |
| High Light: | indoor LED video wall,indoor full color LED display |
||

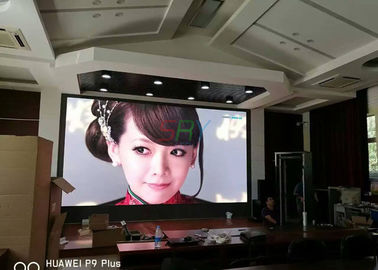

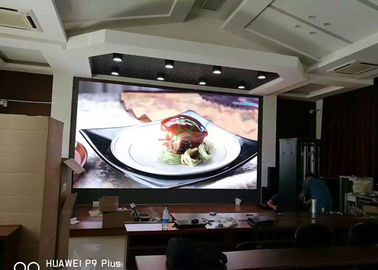

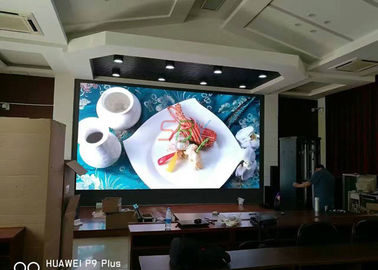

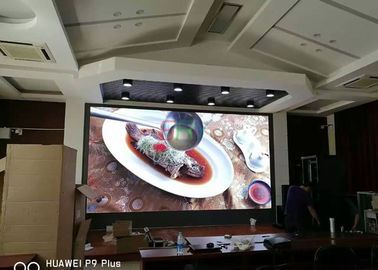

SMD P3mm led video screen rental for Meeting Room / led perimeter boards High Definition
Quick Information
1. Pixel Pitch: 3mm
2. Color Configuration: 1R1G1B 3in1
3. LED Encapsulation: SMD2121
4. Module Size: 192mm x 192mm
5. Cabinet Size: 768mm x 768mm
6. Cabinet Material: Stainless Steel
Features
1. High brightness meet the needs of various application environments.
2. Energy saveing design and good performance in color uniformity.
3. Superb workmanship to ensure every processing details.
4. Environmental raw material (LED chips, mask, glue, and steel cabinets).
5. Large viewing angle. Horizontal:120 ° , Vertical: 120°.
Specifications
| Item | Unit | Parameter |
| Pixels(Pixel Pitch) | mm | 3mm |
| Pixel Density | dots/sqm | 111,111dots/sqm |
| Color Configuration | 1R1G1B 3in1 | |
| LED Encapsulation | SMD2121 | |
| Drive Duty | scan | 1/32scan |
| Cabinet Resolution | dots | 256dots x 256dots |
| Cabinet Size | mm | 768mm x 768mm |
| Cabinet Weight | kg | ≈25kg |
| Brightness | nits | >1,500nits |
| Best Viewing Distance | m | 3m - 30m |
| Best Viewing Angle | ° | H:120 °, V: 120° |
| Lifespan | hours | >100,000hours |
| MTBF | hours | >10,000hours |
| Working Temperature | Celsius | -20Celsius - +60Celsius |
| Working Humidity | 10% - 95%RH | |
| Warranty | 2 Full Years | |
| Certificate | CE, LVD, RoHS |
1. High-precision optical design of LED, each pixel is integrated by RGB LED chips.
2. Perfect color mixing efficiency: rational design on reflector and chip arrangement makes RGB colors mixed and condensed sufficiently and creates no granular sensation.
3. Good performance in flatness, uniformity, consistency and clarity.
4. The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity , and being anti-UV, waterproof, anticorrosion and antirust.
