| Name: | Led Advertising Screen | Pixel Pitch: | 16mm |
|---|---|---|---|
| Module Size: | 256mm X 256mm | Confirguration: | 1R1G1B |
| Led Chip: | DIP346 | Leds Brand: | Epistar |
| Drive IC: | MBI Or JXI | Certificates: | CE, RoHS |
| High Light: | advertising LED display,LED advertising billboards |
||
Large Outdoor LED Advertising Screens For Shopping Mall , Digital P16 LED display
Description:
1. High Brightness
8000nit, SRY led advertising screen can be seen clearly under sunlight.
2. Vivid Picture Quality
SRY led adveritisng screen drive method is static, video and image visual effect is very good.
3. 2 years warranty
Free replacement and maintenance for spare parts is offered within 2 years.
4. Many types of our products
SRY led advertising screen can be designed to many types, such as front service cabinet, double side
cabinet, curved led cabinet, led ball and other shapes.
Feature:
1. 8000: 1 Contrast.
2. high brightness.
3. big viewing angles.
4. 100,000 hour lifetime.
5. 2000HZ (hertz) LED refresh rate.
6. 16 bit (281 trillion colors) color processing.
Competitive Advantages:
1, 12/7 Professional Servicing & Support
2, Clear vivid image quality
3, Long life time, 3 years warranty
4, First-class LED chip
5, Easy Installation & Operation
Specification:
|
Pixel Pitch |
16mm |
|
Pixel Density |
3906dots/sqm |
|
Color Configuration |
1R1G1B |
|
Module Size |
256mm x 256mm |
|
Module Resolution |
16dots x 16dots |
|
Drive Mode |
Static, Constant Current |
|
Brightness |
>8000cd/sqm |
|
Viewing Distance |
16m-160m |
|
Viewing Angle |
H: 120°; V:120° |
|
Interface |
Hub75 |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1000W/sqm |
|
Ave. Power Consumption |
400W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
PC Display Resolution |
1280x1024 |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
Applications:
|
Business Organizations |
Supermarket, large-scale shopping malls, star-rated hotels, restaurants |
|
Financial Organizations |
Banks, post offices, hospital, schools |
|
Public Places |
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings |
|
Entertainments |
Movie theaters, clubs, bars |

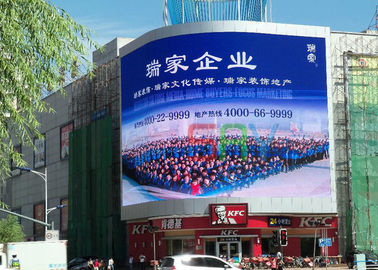

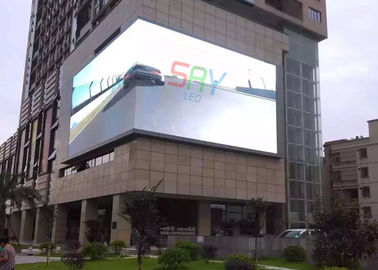

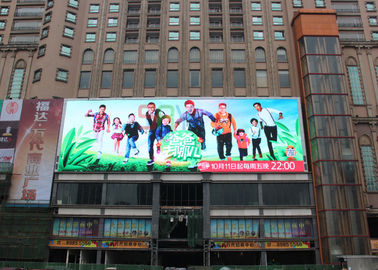

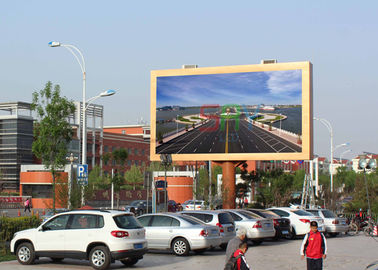

Product Images:
