Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Confirguration: | 1R1G1B | Resolution: | 10000dot/sqm |
| Leds Brand: | Nationstar | Drive IC: | MBI Or JXI |
| Brightness: | 6500cd/sqm | Cabinet Size: | 1280mm X 960mm |
| Certificate: | CE, RoHS | Maintainance: | Front Access |
| High Light: | LED advertising billboards,led advertisement board |
||
P10 Multi Color LED Display Front Access LED Video Billboards 10000 dots / sqm
Description

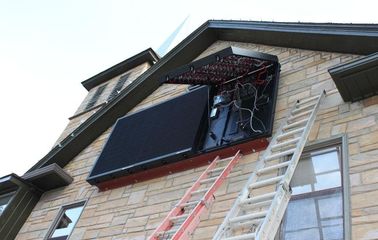

1. Front access led screen, it also called front service. Led screen have front access and rear access two types. Mostly we used rear access cabinets, while if led screen height is not very high(usually less than 2 meters), you can choose front access led cabinet.
2. It is very to install, only need a angle iron and some screws to fix on wall.
3. When led modules, cables or power supply dont work well, we can open the led cabinet from front side to replace or repair broken parts.
Features
1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect.
2. Module surface flatness ± 0.2mm, the entire screen has good flatness.
3. High uniformity display color.
4. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate.
5. IP65 grade for high performance waterproof and dustproof capability.
6. -20°C – 50°Cworking environment for outdoor display, adapted to the harsh environment.
Competitive Advantages
1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Free Maintainance.
4. Free operation and technology training.
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine, Solder Paste Printing Machine, Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium-speed Automatic SMT Machine,
Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Specification
Pixel Pitch | 10mm |
Pixel Density | 10000dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD3535 |
Module Size | 320mm x 160mm |
Module Resolution | 32dots x 16dots |
Standard Cabinet Size | 1280mm x 960mm |
Cabinet Weight | 50KG/sqm |
Brightness | >6500cd/sqm |
Viewing Distance | 10m-100m |
Viewing Angle | H: 120°; V:120° |
Refresh Rate | 2000HZ |
Frame Rate | 120frame/sec |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 250W/sqm |
Storage Temperature | -30℃~+70℃ |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof | IP65 |
Operating Humidity | 10%~95% |
Control PC | With DVI Graphic card |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Operating System | Win 98, Win2000, XP, Win7, Win8 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Applications
Business Organizations | Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
Financial Organizations | Banks, insurance companies, post offices, hospital, schools |
Public Places | Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
Entertainments | Movie theaters, clubs, stages |

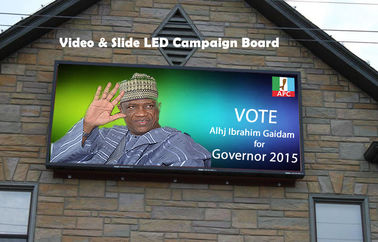

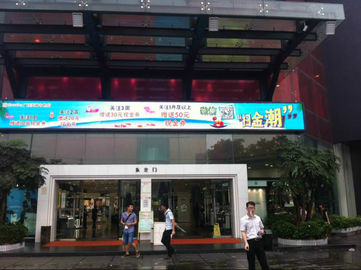

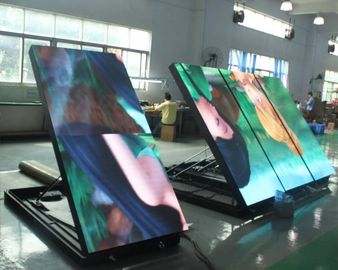

Product Images
