| Product Name: | Window P8 Led Screen | Module Resolution: | 32 X 16 Pixel |
|---|---|---|---|
| Drive Method: | 1/4 Scan | Led Chip: | SMD3535 |
| Application: | Outdoor | Contrast: | 2000:1 |
| Certificate: | CE, RoHS | Warranty: | 2 Years |
| High Light: | LED advertising billboards,led advertisement board |
||
Wireless Control Window PH8 Big LED Advertising Screens 8M to 80M Visual Distance
Description
SRYLED P8 led screen1R1G1B,15625 dots/sqm, creates high brightness and energy saving, display variable video resources,animations,messages to attract audiences attention. Nowadays, SRY P8 SMD Outdoor LED Display Screen used in many occasions,like Sports,advertising,traffic,entertainment
,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc.
Features
1, Wireless control system, 3G, 4G, WIFI, GPRS, USB etc
2, Cabinet size 768mm x 768mm / 1024mm x 1024mm used for fixed installation, 512mm x 512mm usually used for rental use.
3, Can be used in strong sunlight day, heavy rainy day, and various weather, waterproof and dustproof.
4, Installation way: Wall mounted, wall attached, two pole support, one pole support, stand, hanging, front open, double sided etc.
5, Cabinet material: Iron, aluminum, die casting aluminum, brushed aluminum are available.
Competitive Advantage
1. Good Sevice , 24/7 online support service.
2. Free technical traning in factory.
3, Engineer teach customers operate by remotely.
4, Provide free installation drawing.
5, Warranty: 2 years.
Applications
Supermarket, commercial advertising, roadside, buildings, roll station, entertainment events, bus station, schools, stadiums, shopping malls, railways, airports, high way etc.
Specification
|
Pixel Pitch |
8mm |
|
Pixel Density |
15625dots/sqm |
|
Color Configuration |
1R1G1B |
|
Module Size |
256mm x 128mm |
|
Module Weight |
0.4KG/pcs |
|
Interface |
Hub75-A |
|
Standard Cabinet Size |
768mm x 768mm |
|
Cabinet Weight |
32KG |
|
Brightness |
6000cd/sqm |
|
Viewing Distance |
8m-60m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
1000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
PC Display Resolution |
1024x768 |
|
Control PC |
With DVI Graphic card |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |

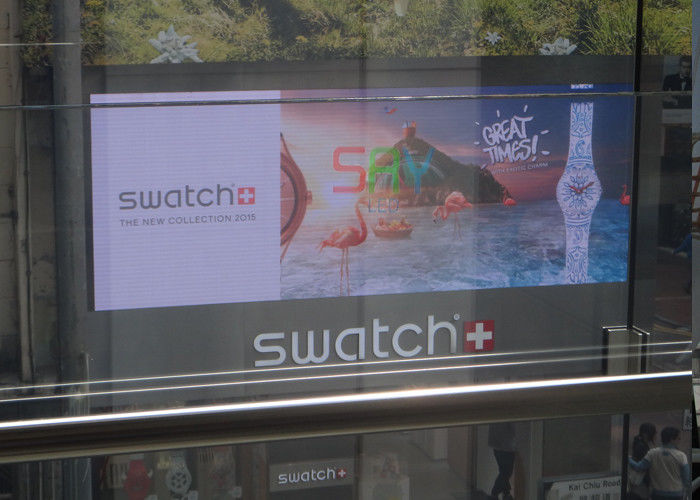

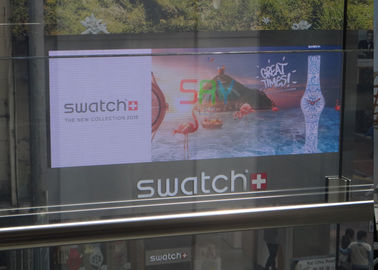

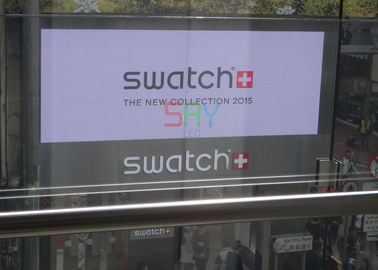

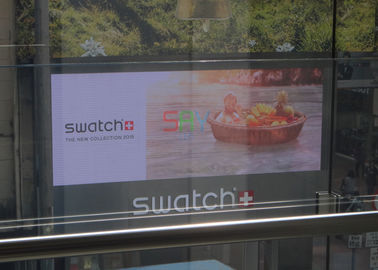

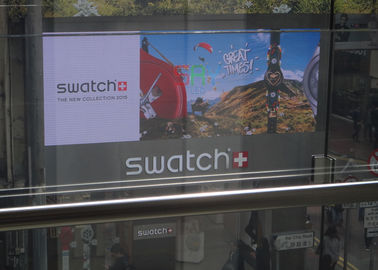

Product Images:
