Product Details:
Payment & Shipping Terms:
|
| Name: | Pixel Pitch 10mm Led Screen | Pixel Pitch: | 10mm |
|---|---|---|---|
| Module Size: | 320mm X 160mm | Confirguration: | 1R1G1B |
| Led Chip: | DIP570 | Leds Brand: | Epistar |
| Drive IC: | MBI Or JXI | Brightness: | 7500cd/sqm |
| High Light: | advertising LED display,LED advertising billboards |
||
Pixel Pitch Outdoor LED Advertising Screens With Big Viewing Angle , 10mm LED display
Description:
1. High Definition & High Performance
10000 dots per sqm, SRY LED advertising display can show vivid HD images and videos.
2. Vivid Picture Quality
With High refresh rate and high quality LEDs, SRY led advertising display offer excellent visual effect to audience.
3. 2 years warranty
Free replacement and maintenance for spare parts is offered within 2 years.
4, High brightness
SRY P10 led advertising screen brightness can up to 7500cd/sqm.
5, Big viewing angle
SRY P10 led advertising screen viewing angle is 120 degree for horizontal and vertical.
6, Waterproof Grade
SRY P10 led advertising screen waterproof grade is IP65, can suitable for rainy and snowy weather.
Features:
1, Control system can be various, Linsn, Nova, Xixun, Huidu etc
2, Many kinds of cabinet shape, rear maintanance, front access, double side, curved, ball etc
3, Led Chip, DIP RGB 3 in 1
Competitive Advantages:
1, First-class led chip and IC
2, Long time aging for modules and led screens
3, 24/7 after-sale service
4, Free technology and operation training
Specification:
Pixel Pitch | 10mm |
Pixel Density | 10000dots/sqm |
Color Configuration | 1R1G1B |
LED Package | DIP570 |
Module Size | 320mm x 160mm |
Module Resolution | 32dots x 16dots |
Drive Mode | 1/4 Scan, Constant Current |
Brightness | 7500cd/sqm |
Viewing Distance | 10m-100m |
Viewing Angle | H: 120°; V:120° |
Refresh Rate | 2000HZ |
Frame Rate | 120frame/sec |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -40℃~+85℃ |
Working Temperature | -20℃~+65℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof | IP65 |
Operating Humidity | 10%~95% |
Control Method | Synchronous, 3G, WIFI, USB |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 etc |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Applications:
Business Organizations | Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
Financial Organizations | Banks, insurance companies, post offices, hospital, schools |
Public Places | Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
Entertainments | Movie theaters, clubs, stages |

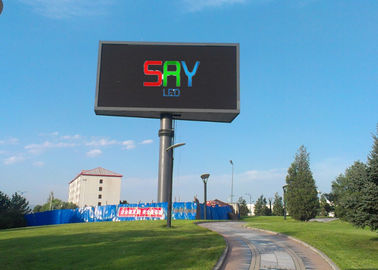

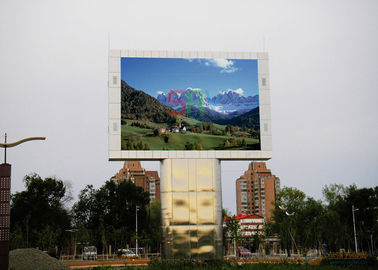

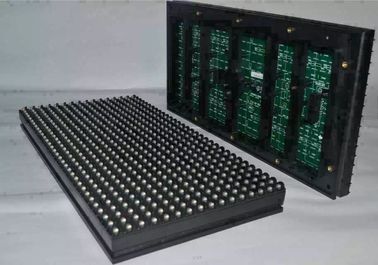

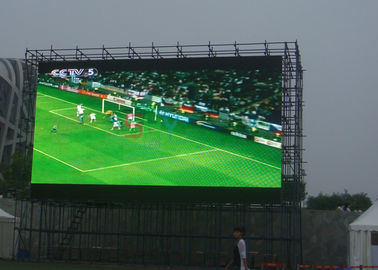

Product Images:
