Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | Resolution: | 27777dots/sqm |
|---|---|---|---|
| Cabinet Size: | 960mm X 960mm | Leds Brand: | Nationstar |
| Drive IC: | MBI Or JXI | Brightness: | 6500cd/sqm |
| Waterproof: | IP65 | Led Type: | SMD3535 |
| High Light: | advertising LED display,led advertisement board |
||
High Definition Outside LED Video Screen With 6500cd / sqm Brightness
Quick Detail
1, P6 SMD3535
2, Power Supply: Meanwell or Chuanglian
3, Driver IC: MBI5020 / MBI5024 / JXI5020
4, Connector: Neutric
5, Control System: Lisn / Nova / DBstar / ZQEC etc
Description
1, Large viewing angle at 140 degree horizontally and vertically
2, High resolution:27777 pixel pitches per square meters
3, High brightness up to 6500cd/sqm
4, Clear and vivid advertising image and video;
5, High contrast ratio at 4000:1
6, IP65 waterproof for outdoor use;
Features
1, Control system can be various, Sychronous system, 3G, WIFI, GPRS etc
2, Many kinds of cabinet shape, rear maintanance, front access, double side, curved, ball etc
3, Led Chip, SMD3535 RGB 3 in 1
Competitive Advantage
1. We do packaging LED chip in our own factory
2. 24/7 hours online Remote Support
3. Solution and PCB design
4. Free factory training or engineer support in the spot
5. Onsite installation instruction and regular inspection
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine,
Solder Paste Printing Machine,Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium speed Automatic SMT Machine,
Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI)
Equipement.
Applications
Commercial advertising, buildings, night club, entertainment events, business establishments, stock exchange centers, bus station, schools, telecommunications, stadiums, shopping malls, railways, airports, high way etc.
Specification
|
Pixel Pitch |
6mm |
|
Pixel Density |
27777dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Mode |
1/8 Scan, Constant Current |
|
Brightness |
>6500cd/sqm |
|
Viewing Distance |
6m-60m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1200W/sqm |
|
Ave. Power Consumption |
500W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
PC Display Resolution |
1280x1024 |
|
Operating System |
Win 98, Win2000, XP, Win7 ,Win8.etc |
|
Video Signal Mode |
RF,S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |

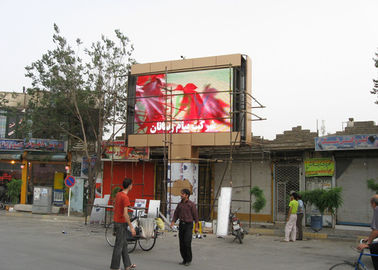

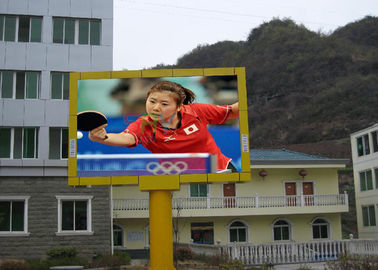

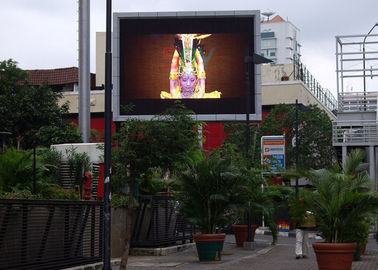

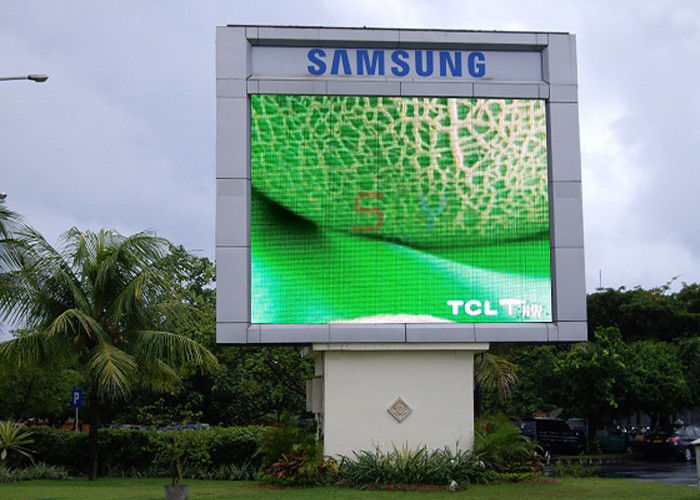

Product Images
