Product Details:
Payment & Shipping Terms:
|
| Name: | Pixel Pitch 10mm Led Screen | Pixel Pitch: | 10mm |
|---|---|---|---|
| Module Size: | 320mm X 160mm | Confirguration: | 1R1G1B |
| Led Chip: | SMD3535 | Leds Brand: | Nationstar |
| Drive IC: | MBI Or JXI | Brightness: | 7500cd/sqm |
| Cabinet Size: | 960mm X 960mm | Cabinet Weight: | 45KG |
| High Light: | advertising LED display,led advertisement board |
||
High Brightness LED Advertising Screens Commercial SMD RGB LED Video Display
Description
1, Weatherproof design, completely outdoor use.
2, Easy for assembling and connection with the connector added.
3, High color uniformity and clear image can bring you a vivid audio visual effect.
4, Both front and rear access are available.
5, The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.
6, Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent and uniform.
7, The maintenance of pixel and single led has been realized.
8, Good quality raw material, accurate technique and careful inspection insures the high quality of led display
Features
1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect.
2. Module surface flatness ± 0.2mm, the entire screen has good flatness.
3. High uniformity display color.
4. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate.
5. IP65 grade for high performance waterproof and dustproof capability.
6. -25°C – 65°Cworking environment for outdoor display, adapted to the harsh environment.
Competitive Advantages
1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
Specification
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Standard Cabinet Size |
960mm x 960mm |
|
Cabinet Weight |
45KG |
|
Brightness |
>6500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control PC |
With DVI Graphic card |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications
|
Business Organizations |
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
|
Entertainments |
Movie theaters, clubs, stages |

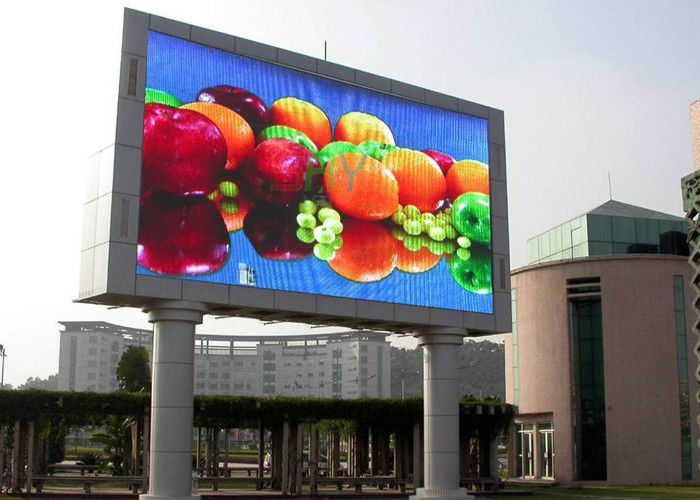

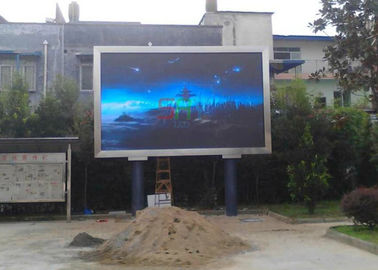

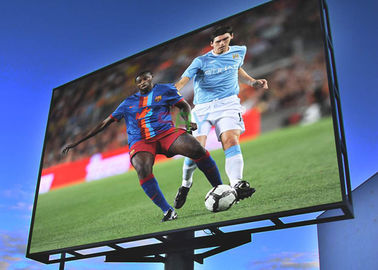

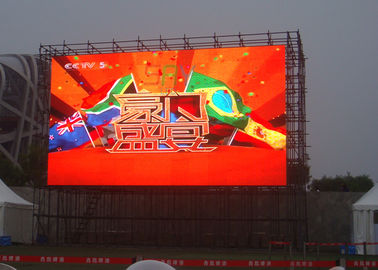

Product Images
