HD Pixel 5MM Mobile Led Advertising Screens 1/8 Scan Portable Video Led Display
Description
P5 outdoor led display screen, with 40000 dots/ sqm high resolution, show super clear images and video to audience, brings vivid visual effect. It is small pixel pitch product for outdoor use, IP65 waterproof level. P5 led display can make fixed and rental cabinets, now mainly used for outdoor show, events and all kinds of advertising activities.
Quick Detail:
1. 320x160 mm
2. MBI 5024 drive IC
3. 1/8 scan constant current
4. SMD2727 LED type
5. RGB LED is Epistar brand
6. 64x32 dots
Feature
1) High brightness : over 6000 nits
2) High definition: 40000 pixels per square meter
3) Waterproof : IP65 standard
4) Super-light: only 12KG per panel
5) Ultra-thin: only 75mm thickness
6) It can work with our 640x640mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m
7) The appearance is very simple and elegant,
8) Very easy to calculate the area of LED screen
9) With fast lock system, easy to install and dismantle
10) Can be stacked on floor or hung on truss
Applications
Commercial advertising, buildings, entertainment events, restaurant, hotel, schools, stadiums, shopping malls, railways, airports, high way, theater, cinemas etc.
Specification
|
Pixel Pitch |
5mm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2727 |
|
Module Size |
320mm x 160mm |
|
Drive Mode |
1/8 Scan, Constant Current |
| Drive IC | MBI5024 |
|
Module Thickness |
2.8CM |
|
Interface |
HUB75 |
|
Brightness |
Over 6500cd/sqm |
|
Best Viewing Distance |
5m-100m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
2100HZ |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Ave. Power Consumption |
400W/sqm |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
LINSN, NOVA, XIXUN, HD |
|
Video Signal Mode |
RF,S-Video, RGB, RGBHV, YUV, YC etc |
| PC System | Windows Series, XP, Win7, Win8, Win10 |

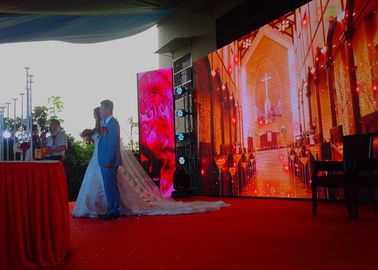

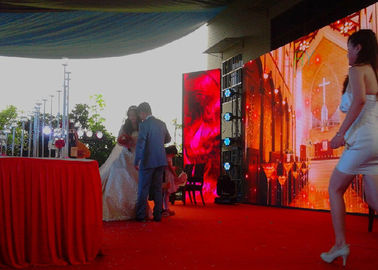

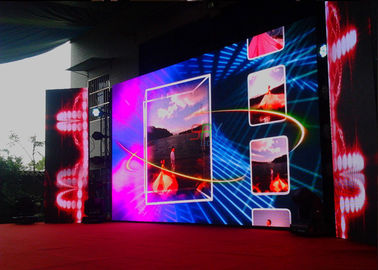

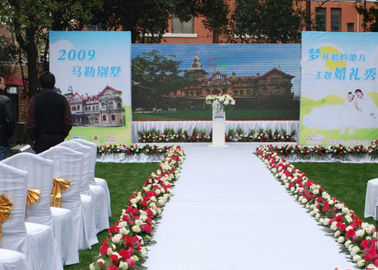

Product Images
