Product Details:
Payment & Shipping Terms:
|
| Name: | Advertising Led Video Wall | Pixel Pitch: | 10mm |
|---|---|---|---|
| Module Size: | 320mm X 160mm | Resolution: | 10000dots/sqm |
| Led Chip: | DIP570 | Led Type: | RGB 3 In 1 |
| Drive Method: | 1/4 Scan | Waterproof: | IP65 |
| High Light: | advertising LED display,led advertisement board |
||
10mm RGB Outdoor LED Video Wall Advertising LED Display Waterproof 32 dots x 16 dots
Description
1, DIP RGB 3 in 1 is used for this model, which guarantee good white balance.
2, Cabinets with Protection grade IP65 front and IP54 rear, suitable for all outdoor working environment.
3, Fast locks at the four sides of the cabinet, easy assemble and be piled up and be hoisted.
4, Backside maintenance. Exterior exposed module screws, easy dismantling.
5, Waterproof connectors, safe and steady.
Features:
1. Adopted die casting way to produce the cabinet‘s dimensional accuracy is very high. The split joint
effect is perfect.
2. The weight of the cabinet is very light and installation way is very simple. The former two can satisfy
the customer’s requirements of quick dismantle and installation.
3. New structure design to meet the fixed and hanging installation requirements.
4. Cost performance and convenient transportation make it more sufficient.
5. Long viewing distance and wide viewing angle.
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
DIP570 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Brightness |
7500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
|
Business Organizations |
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
|
Entertainments |
Movie theaters, clubs, stages |
Our Service and Mission
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.

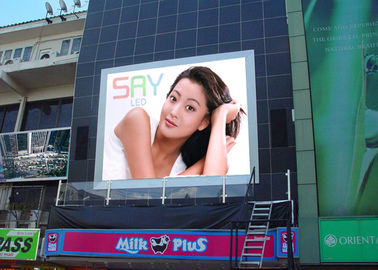

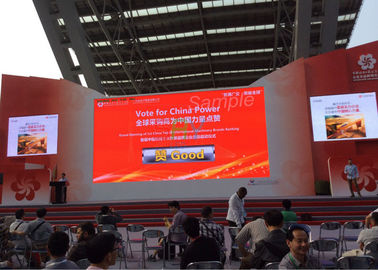

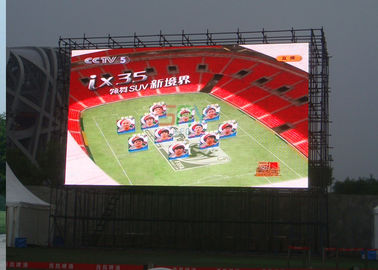

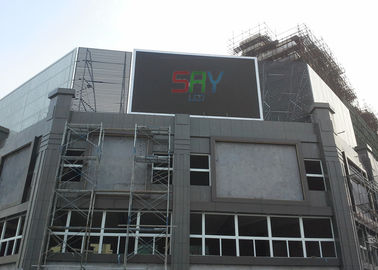

Product Images:
