Product Details:
Payment & Shipping Terms:
|
| Name: | Rental Led Display | Pixel Pitch: | 6.67mm |
|---|---|---|---|
| Module Size: | 320mm X 160mm | Cabinet Size: | 640mm X 640mm |
| Cabinet Weight: | 10KG | Drive IC: | MBI Or JXI |
| Viewing Distance: | 6-70m | Consumption: | 300W/sqm |
| High Light: | rental LED screen,hire LED screen |
||
Light Weight Rental LED Display Easy Installation / P6.67 Outdoor Stage LED Screen
Description
1. Light weight, it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Thin cabinet:the thickness is only 7 CM, the space of the screen is small , and the entire screen will be more beautiful.
3.Flat screen: smooth surface error is under 0.1cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.
4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.
5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
Feature
1, Light weight and ultra slim
2, Quickly and easily installed
3, High refresh rate
4, Beautiful rear side design
5, Blue and gold color are available
Specification
|
Pixel Pitch |
6.67 mm |
|
Pixel Density |
22477dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
48dots x 24dots |
|
Drive Mode |
1/6 Scan, Constant Current |
|
Brightness |
>6500cd/sqm |
|
Viewing Distance |
6m-70m |
|
Cabinet Size |
640mm x 640mm |
|
Cabinet Material |
Die-casting Aluminum |
|
Cabinet Weight |
10KG |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1000W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
PC Display Resolution |
1280x1024 |
|
Operating System |
Win 98, Win2000, XP, Win7 ,Win8.etc |
|
Video Signal Mode |
RF,S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |

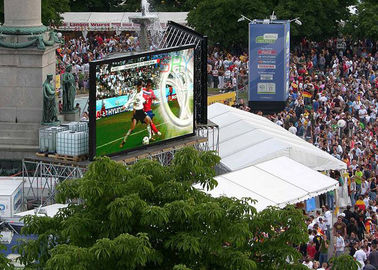

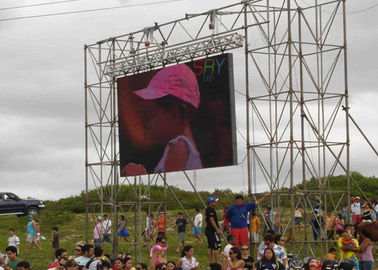

Applications:
| Business Organizations | Shopping malls, concert festival activity, hotels |
| Financial Organizations | Banks, post offices, hospital, schools |
| Public Places | Airports, exhibition halls, stadiums, meeting rooms |
| Entertainments | Clubs, bars, concert stages |
Competitive Advantage
1) We have our own developing and designing team, which ensure our own technological and innovative product for customers.
2) Good after-sale service.
Our technical team and sales teams can guarantee a fast and high efficiency after-sales service.
3) Fast delivery time. Our delivery time is only 7-15 days, if customer order is urgent, we will arrange your order as priority.
4) If necessary, our engineers can be sent to your country to assist you to solve all problem.
5) Customers can come to our company for free traning.

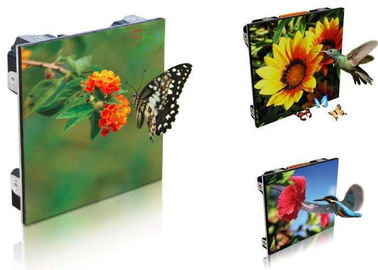

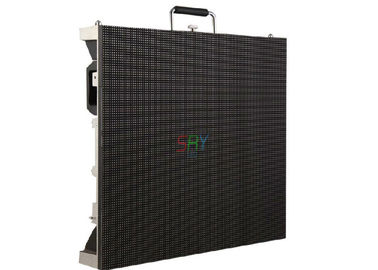

Product Images
