Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3mm | Led Chip: | SMD2121 |
|---|---|---|---|
| Resolution: | 111111 Dots/sqm | Drive IC: | MBI5024 Or JXI5020 |
| Cabinet Size: | 576mm X 576mm | Cabinet Weight: | 8KG/pcs |
| Cabinet Material: | Die Casting Aluminum | Warranty: | 2 Years |
| Highlight: | rental LED screen,hire LED screen |
||
Conference Room P3 Electronic Display Board High Brightness 576mm X 576mm
Description
1, Lightweight:The aluminum die-casting technology makes the single cabinet as light as 8KG,which is convenient for assembly and transportation.
2, Seamless connection:The aluminum die-casting technology,togrther with the high-precision CNC procession,makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
3, Low power consumption:Combined with the brightness auto-adjusting technology and PFC power supply,low current can save energy over 35%,which in other words is to save money .
4, Easy to maintain:No need to disassemble the shile screen for maintenance.Each component can be detached individually for that purpose.
5, Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
6, Ghost canceling:Exquisite and clear pict quality with no ghost.Both upstream and downstream ghosts can be automatically canceled.
7, High refresh rate:Over 2000Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.
8, Low brightness and Hight gray scale:14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
Features
1, Excellent flatness, neighbouing module gap less than 0.1mm.
2, High contrast, 4000:1.
3, Easy installation, with fast locks, power and data plugs.
4, Lacquer coating, protect PCB and relevent components.
5, High resolution, 111111dots/sqm.
6, Short viewing distance, can be seen at 1- 2 meters short distance.
Our Service
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English.
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
Specification
Pixel Pitch | 3mm |
Pixel Density | 111111dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2121 |
Module Size | 192mm x 192mm/192mm x 96mm |
Module Resolution | 64dots x 64dots/64dots x 32dots |
Drive Mode | 1/32Scan |
Standard Cabinet Size | 576mm x 576mm |
Cabinet Weight | 8KG |
Brightness | ≥1200 cd/sqm |
Viewing Distance | 3m-30m |
Viewing Angle | H: 140°; V:120° |
Refresh Rate | 2000HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 1000W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30℃~+70℃ |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP43 |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Applications
Business Organizations | Supermarket, large-scale shopping malls, star-rated hotels, |
Financial Organizations | Banks, insurance companies, post offices, hospital, schools |
Public Places | Subway, airports, stations, parks, exhibition halls, squares, |
Entertainments | Movie theaters, clubs, stages |

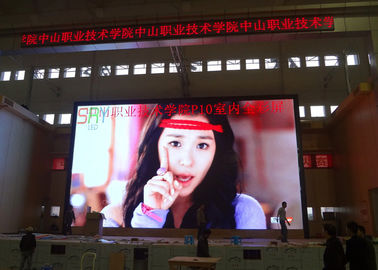

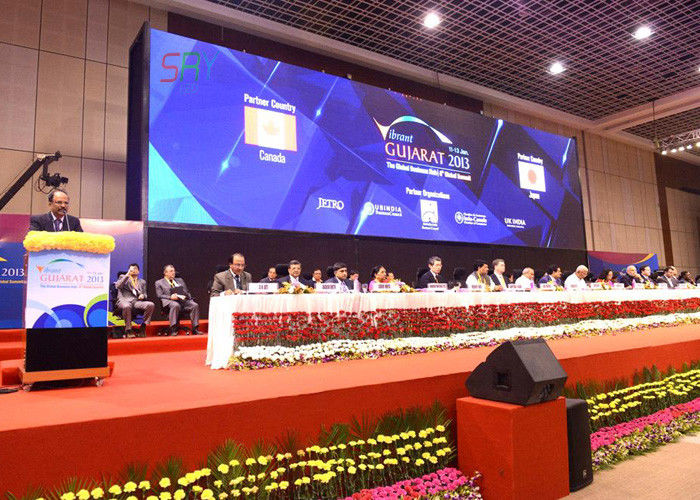

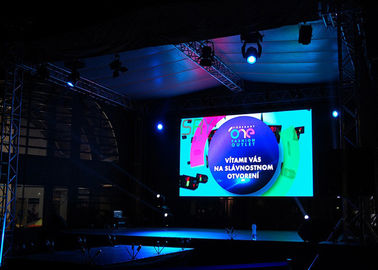

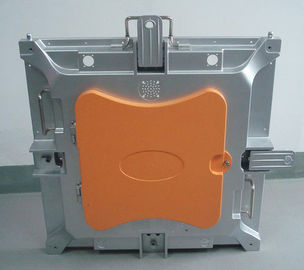

Product Images
