Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3mm | Resolution: | 32 X 32 Dots |
|---|---|---|---|
| Led Chip: | SMD2121 | Drive Method: | 1/16 Scan Or 1/32 Scan |
| Drive IC: | JXI5020 | Contrast: | 4000:1 |
| Control Card: | LINSN, NOVA, XIXUN, HD, Colorlight | Warranty: | 2 Years |
| High Light: | rental LED screen,hire LED screen |
||
P3 Digital Rental Led Display High Contrast Indoor Led Video Wall
Description

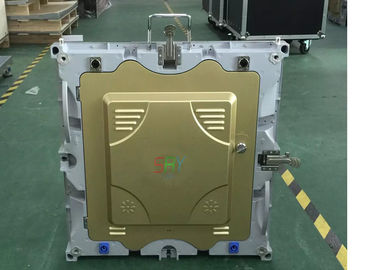

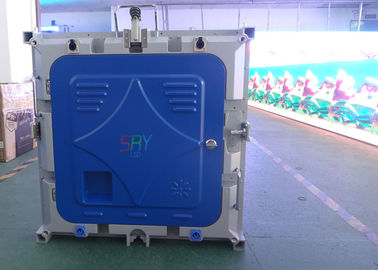

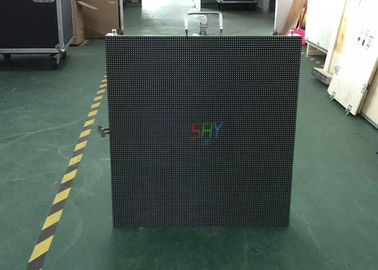

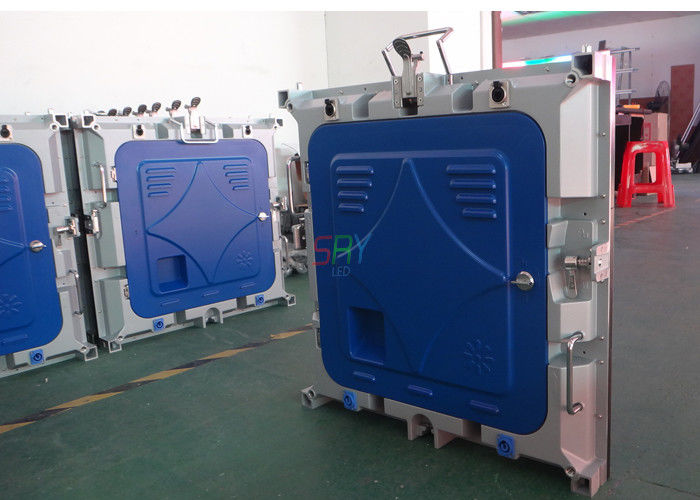

SRYLED P3 rental LED display is made of 576mm x 576mm die-casting aluminum cabinet. It’s ultra-thin and super-light. With special locks, only 3 steps to install the adjacent panels, more convenient & fast to install and disassemble.
Features:
(1) High definition, 111111pixels/sqm, can show vivid images and video clearly. It’s mainly for conference, meeting room, where it needs connect camera for live video.
(2) Just 8 KG per panel,80mm thickness, can stand alone.
(3) It is extremely easy to calculate the size of LED screen.
(4) With die-casting aluminum cabinet, tolerance can be controlled within 0.2mm so the surface is very smooth.
(5) We have u unique masks so the surface is very smooth, viewing angle is wider than other suppliers in China!
(6) The panel can be hung on truss or stacked on floor.
We produce a lot so we have good prices and stable quality, welcome to contact us for more details.
Features
1, Excellent flatness, neighbouing module gap less than 0.1mm.
2, High contrast, 4000:1.
3, Easy installation, with fast locks, power and data plugs.
4, Lacquer coating, protect PCB and relevent components.
5, High resolution, 111111dots/sqm.
6, Short viewing distance, can be seen at 1- 2 meters short distance.
Specification
|
Pixel Pitch |
3mm |
|
Pixel Density |
111111dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
|
Module Size |
192mm x 192mm/192mm x 96mm |
|
Module Resolution |
64dots x 64dots/64dots x 32dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
576mm x 576mm |
|
Cabinet Weight |
8KG |
| Drive IC | JXI 5020 |
|
Brightness |
≥1200 cd/sqm |
|
Viewing Distance |
3m-30m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1000W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications
|
Business Organizations |
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
Subway, airports, stations, parks, exhibition halls, squares, stadiums, museums, |
|
Entertainments |
Movie theaters, clubs, stages |
