Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Resolution: | 10000dots/sqm |
|---|---|---|---|
| Confirguration: | RGB 3 In1 | Led Chip: | DIP570 |
| Cabinet Size: | 640mm X 640mm | Cabinet Weight: | 10KG |
| Brightness: | 7500cd/sqm | Waterproof: | IP65 |
| High Light: | hire LED screen,Rent LED Display |
||
7500cd / sqm Outdoor LED Screen Hire WIFI / USB Waterproof LED Display
Description
1. Hanging beam structural design makes it easy and fast for installation.
2. Neat and Hidden Wiring allow the LED display more tidy and beautiful.
3. Locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
4. Fast installation, a cabinet could be uninstalled in one minute.
5. High brightness makes it suitable for strong sunlight environment.
Features:
1, Control system can be various, Linsn, Nova, Xixun, Huidu etc.
2, Power supply. Meanwell, Chuanglian and G-energy is available.
3, Led Chip, DIP RGB 3 in 1.
4, Cabinet can be die casting aluminum and brushed aluminum.
Competitive Advantages:
1. CE & RoHS certificate
2. 24 months warranty, life long free tech-support
3. Wide visual angle, smooth surface
4. Excellent contrast ratio, high resolution
5. Perfect uniformity, no mosaic
6. Light weight, easy to installation
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
RGB 3 in 1 |
|
LED Package |
DIP570 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Brightness |
7500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
|
Business Organizations |
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms |
|
Entertainments |
Movie theaters, clubs, stage background, events, activities |

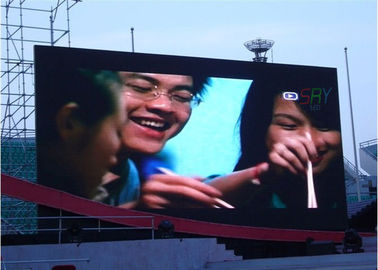

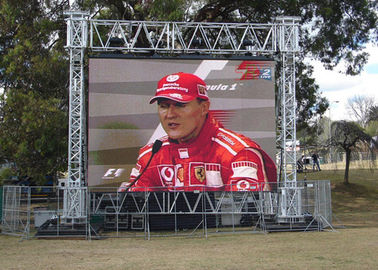

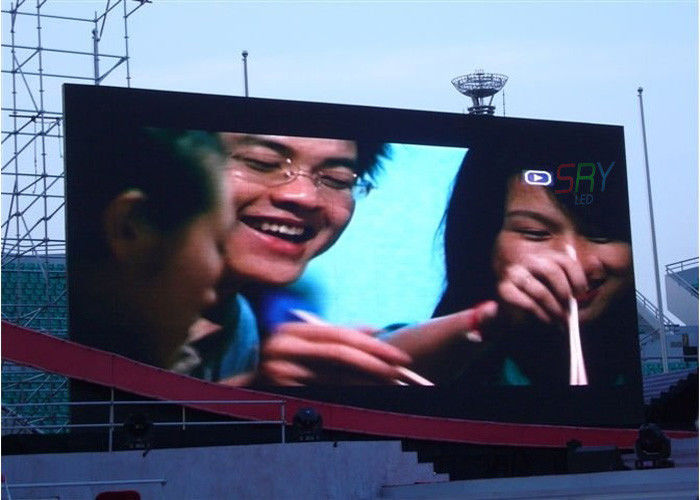

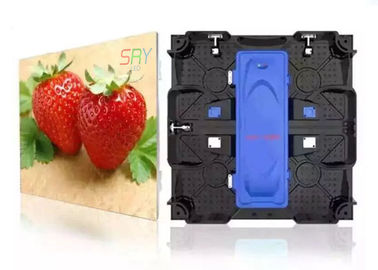

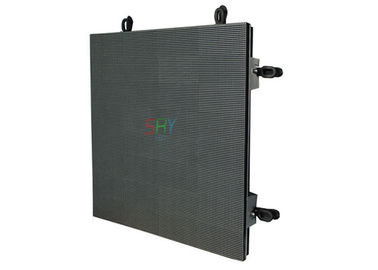

Product Images:
