SMD2727 LED Module For Rental / Electronic Waterproof LED Module Dbstar 16 bits

Large Image : SMD2727 LED Module For Rental / Electronic Waterproof LED Module Dbstar 16 bits

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY-OF-P5

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	US$ 35.5 ~ 36.5 / PCS
Packaging Details:	Free Charge Carton(80pcs in one carton)
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	3,000 PCS per Month

Contact Now

Detailed Product Description

Pixel Pitch:	5mm	LED Encapsulation:	SMD2727
Module Size:	160mm X 160mm	Drive Duty:	1/8scan Constant Current
Module Weight:	0.35kg	Waterproof:	IP65
Brightness:	6,500cd/sqm	Warranty:	2 Full Years
High Light:	Indoor LED Display Module , full color LED Display Module

SMD2727 LED Module For Rental / Electronic Waterproof LED Module Dbstar 16 bits

Decription:

P5 outdoor 1R1G1B 3in1 SMD3535 LED module, the smallest pixel pitch of outdoor series modules. It has the highest definition. Also its brightness is high.

Features:

1. Screen brightness: >6,500cd/sqm

2. Screen working humidity: 10% ~ 95%.

3. Screen working temperature: -20ºc ~ +60ºc.

4. Screen viewing angle: H: 120°; V: 120°

Specificition:

Pixel Pitch	5mm
Pixel Density	40,000dots/sqm
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3535
Module Size	160mm x 160mm
Module Resolution	32dots x 32dots
Drive Duty	1/8 Constant Current
Brightness	>6,500nits
Viewing Distance	5m - 50m
Viewing Angle	H: 120°; V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V-20A, AC110V/ 220V/ 50HZ
Max Power Consumption	1,000W/sqm
Ave. Power Consumption	330W/sqm
Storage Temperature	-40℃~+80℃
Working Temperature	-20℃~+60℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof	IP65
Operating Humidity	10%~95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Supermarket, large scale shopping mall, exclusive agency, chain store, star rated hotel, restaurant, travel agency, pharmacy and etc outside advertising use.

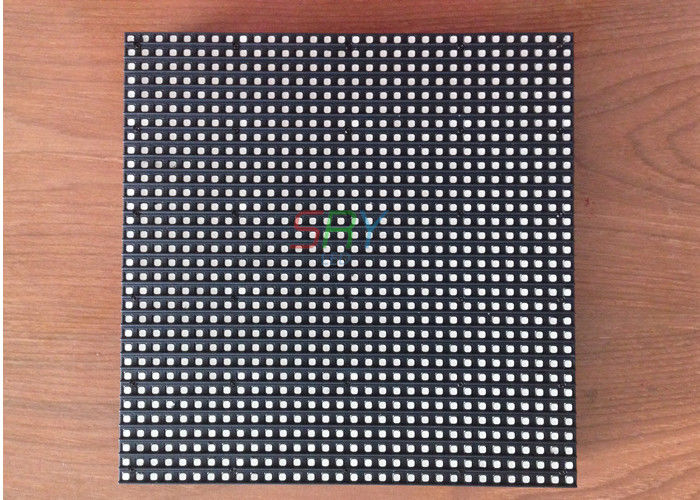

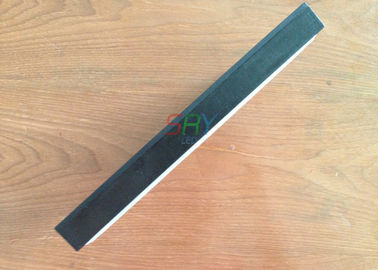

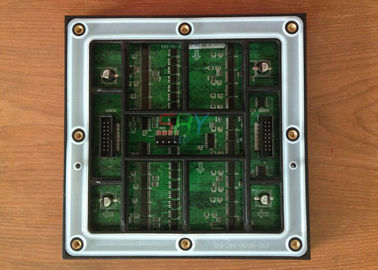

Module Pictures:

SMD2727 LED Module For Rental / Electronic Waterproof LED Module Dbstar 16 bits
