Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | Module Size: | 192mm X 192mm |
|---|---|---|---|
| Cabinet Size: | 576mm X 576mm | Resolution: | 27777dots/sqm |
| Led Chip: | SMD3528 | Viewing Distance: | 6-60m |
| Certificate: | CE RoHS | Average Consumption: | 250W/sqm |
| High Light: | indoor led display screen,indoor full color LED display |
||
1/16 Scan 6mm Stage Background LED Display Digital Indoor LED Stage Screen
Quick Detail:
1. 32 × 32 dots per LED module
2. 192 × 192 mm module size
3. SMD3528 LED type
4. 1/16 scan constant current
5. About 1.5 cm thick
6. JXI5020 drive IC
Feature:
1. Cabinet Can Be Front or Rear Maintenance
2. LED Cabinet Material: Iron, aluminum, die cast aluminum
3. LED Cabinet Size: 576*576*80mm
4, Cabinet Weight: 10kg/cabinet
5. Control software:Novastar / Linsn
Description:
1. Use friendly computer system
2. Approximate 3D image quality
3. Fast and easy to assemble and dismantle
4. Wide viewing angle ,excellent white color balance
5. High grayscale with perfect visual performance
6. High reliability and long lifespan
Competitive Advantage:
1, P6 indoor fixed led display uniform in brightness and color.
2, Indoor fixed led display contrast ratio up to 4000:1 to react real color of the content.
3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade.
4, Large viewing angle at 140 degree horizontal and vertical.
5, P6 indoor fixed led display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use.
Specification:
|
Pixel Pitch |
6mm |
|
Pixel Density |
27777dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3528 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
576mm x 576mm |
|
Cabinet Weight |
10KG |
|
Brightness |
≥1100 cd/sqm |
|
Viewing Distance |
6m-60m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
700W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
|
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
subway, airports, stations, gas stations, bookstores, parks, exhibition halls, |
|
Entertainments |
Movie theaters, clubs, bars, stages |

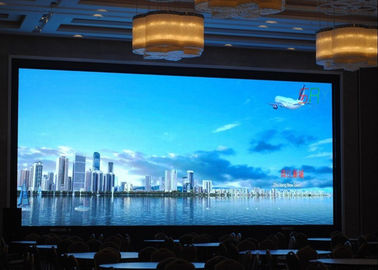

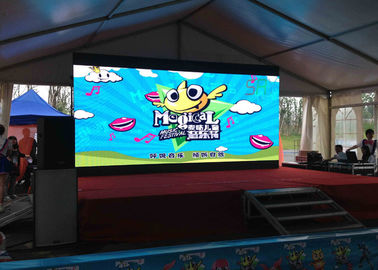

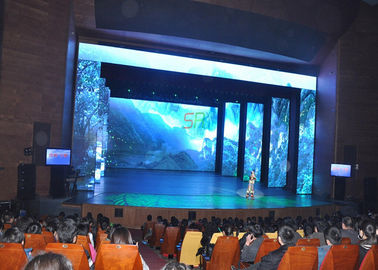

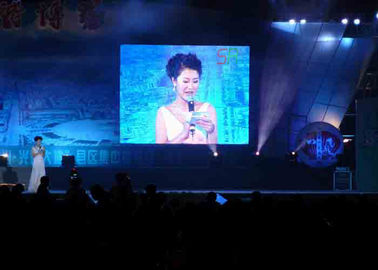

Product images:
