Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3mm | Module Size: | 192mm X 192mm |
|---|---|---|---|
| Confirguration: | RGB 3 In 1 | Led Chip: | SMD2121 |
| Brightness: | 1200cd/sqm | Drive IC: | MBI5024 Or JXI5020 |
| Display Source: | Video, Image, Message, Sheet | Control Card: | LINSN, NOVA, XIXUN, HD |
| High Light: | indoor LED video wall,indoor full color LED display |
||
1200 nit Rental Indoor Fixed LED Display P3 With Brushed Aluminum Cabinet
Description
1, Long lifetime. Adopting high quality LED lamps as core material and patent PCB design for the screen, it ensures long lifetime of the product.
2, Wide view angle. Horizontal (140) and vertical (120) viewing angles guarantee viewers can see the playing miages from any direction in front.
3, Stable performanve. We make anti-electromagnetic wave and adopt distribution scan, it works more reliable and stables.
4, Exquisite images. Nonlinearity correction technology makes the images clear and vivid.
5, Multiple formarts. It can supports text, graphic, picture, animation and video.
6, Live broadcast. It can support DVI,HDMI, 3G/HD/SC with SDI high definition display mode.
Features
1, Wide viewing angles, H: 140°, V:120°
2, High resolution, 111111dots/sqm
3, Seamless and lightweight, 8KG/pcs
4, Easy installation and maintenance
5, Brilliant colors, breathtaking grayscales
Competitive Advantages
1, First-class LED chip and IC
2, Clear vivid image quality
3, Long life time of more than 100,000 hrs
4, Short delivery time
5, 24/7 hrs after sale service
6, 2 years warranty
Specification
Pixel Pitch | 3mm |
Pixel Density | 111111dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2121 |
Module Size | 192mm x 192mm/192mm x 96mm |
Module Resolution | 64dots x 64dots/64dots x 32dots |
Drive Mode | 1/16 Scan |
Standard Cabinet Size | 576mm x 576mm |
| Cabinet Material | Brushed Aluminum |
Cabinet Weight | 8 KG |
Brightness | ≥1200 cd/sqm |
Viewing Distance | 3m-30m |
Viewing Angle | H: 140°; V:120° |
Refresh Rate | 2000HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 1000W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30℃~+70℃ |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP43 |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Applications
Business Organizations | Supermarket, large-scale shopping malls, star-rated hotels, travel agencies |
Financial Organizations | Banks, insurance companies, post offices, hospital, schools |
Public Places | Subway, airports, stations, parks, exhibition halls, squares, stadiums, museums, |
Entertainments | Movie theaters, clubs, stages |

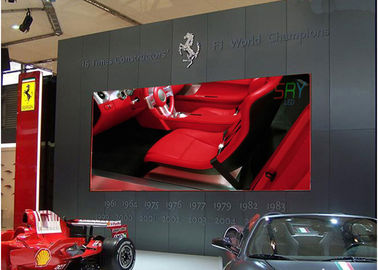

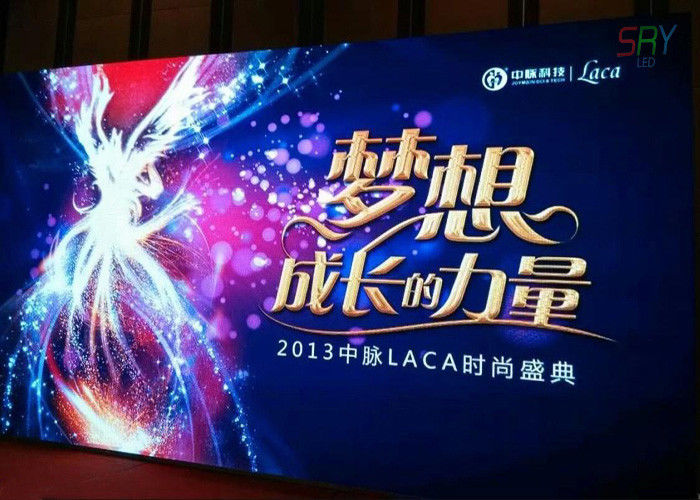

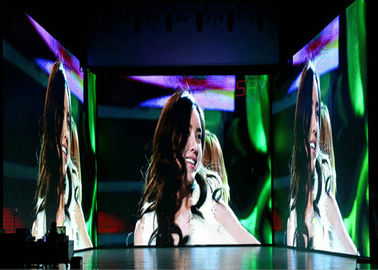

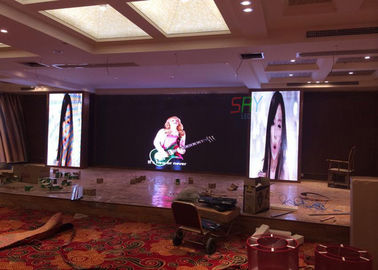

Product Images
