Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 7.62mm | Module Size: | 244mm X 122mm Or 244mm X 244mm |
|---|---|---|---|
| Cabinet Size: | 976mm X 976mm | Resolution: | 17222dots/sqm |
| Viewing Distance: | 7-80m | Average Consumption: | 250W/sqm |
| Cabinet Type: | Front Maintenance | Certificate: | CE, RoHS |
| High Light: | indoor LED video wall,indoor full color LED display |
||
P7.62 SMD Indoor LED Video Wall , Commercial Front Service LED Display
Quick Detail:
1. 64 × 32 dots per LED module
2. 244 × 244 mm module size
3. SMD3528 LED type
4. 1/16 scan constant current
5. About 1.5 cm thick
6. JXI5020 drive IC
Feature:
1. Cabinet is maintenance from front side
2. LED Cabinet Material: Iron and aluminum
3. LED Cabinet Size: 976mm x 976mm
4, Cabinet Weight: 35kg/cabinet
5. Control software:Novastar / Linsn
Description:
1. Use friendly computer system
2. Approximate 3D image quality
3. Fast and easy to assemble and dismantle
4. Wide viewing angle ,excellent white color balance
5. High grayscale with perfect visual performance
6. High reliability and long lifespan
Competitive Advantage:
1. Easy to install and remove
2. Convenient for maintainance
3. Less Installation material and labor
Specification:
|
Pixel Pitch |
7.62mm |
|
Pixel Density |
17222dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3528 |
|
Module Size |
244mm x 122mm/244mm x 244mm |
|
Module Resolution |
32dots x 32dots/ 64dots x 32dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
976mm x 976mm |
| Cabinet Type | Front Service |
|
Cabinet Weight |
45KG |
|
Brightness |
≥1000 cd/sqm |
|
Viewing Distance |
7m-80m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
700W/sqm |
|
Ave. Power Consumption |
200W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
|
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
subway, airports, stations, gas stations, bookstores, parks, exhibition halls, |
|
Entertainments |
Movie theaters, clubs, bars, stages |

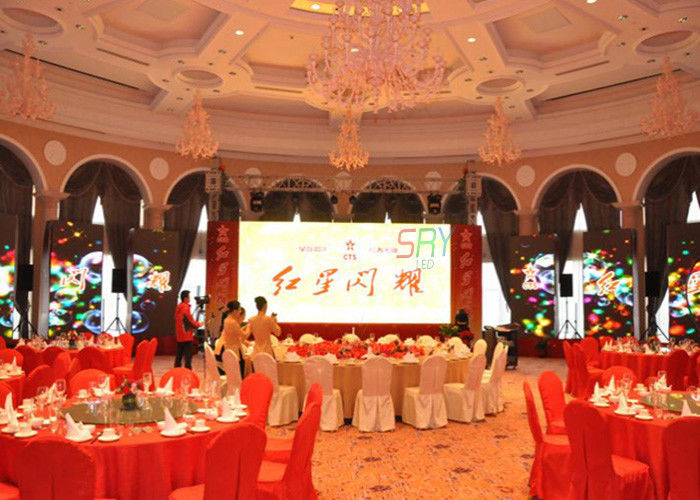

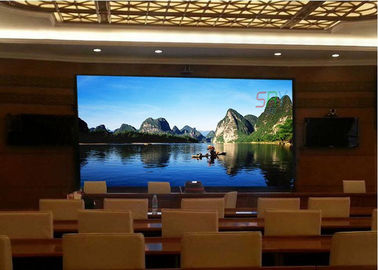

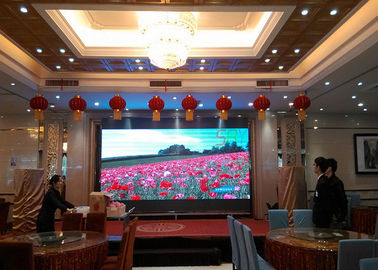

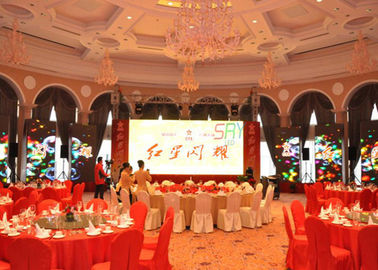

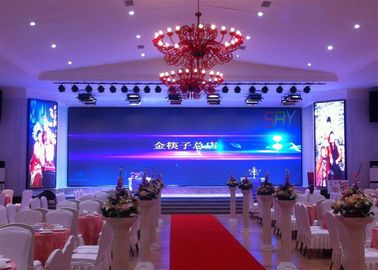

Product images:
