Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Cabinet Size: | 960mm X 960mm | Resolution: | 10000dots/sqm |
| Best Viewing Distance: | 10-100m | Average Consumption: | 250W/sqm |
| Certificate: | CE, RoHS | Drive Method: | 1/8 Scan |
| High Light: | indoor led display screen,indoor full color LED display |
||
WIFI / 3G P10 RGB Indoor Fixed LED Display For Airport / Station , Full Color LED Screen
Quick Detail:
1. 32 × 16 dots per LED module
2. 320 × 160 mm module size
3. SMD3528 LED type
4. 1/8 scan constant current
5. About 1.5 cm thick
6. JXI5020 drive IC
Feature:
1. Front access or rear access cabinets are available
2. LED Cabinet Material: Iron and aluminum
3. LED Cabinet Size: 960mm x 960mm
4, Cabinet Weight: 35kg/cabinet
5. Control software:Novastar / Linsn / Xixun / Huidu
6, Control way: 3G / WIFI / GPRS / RS232 / Sychronous
Description:
1. Use friendly computer system
2. Fast and easy to assemble and dismantle
3. Wide viewing angle ,excellent white color balance
4. High grayscale with perfect visual performance
5. High reliability and long lifespan
Competitive Advantage:
1. High Cost-effective
2. 24/7 hrs after sale service
3. 48 hours aging for modules and led screen
4, Free training for software operation
5, Engineer online guidance
6, Short delivery time
7, Low power consumption
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3528 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Mode |
1/8 Scan |
|
Standard Cabinet Size |
960mm x 960mm |
|
Cabinet Weight |
35KG |
|
Brightness |
900 cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
1000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
650W/sqm |
|
Ave. Power Consumption |
200W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
|
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, |
|
Financial Organizations |
Banks, insurance companies, post offices, hospital, schools |
|
Public Places |
subway, airports, stations, gas stations, bookstores, parks, exhibition halls, |
|
Entertainments |
Movie theaters, clubs, bars, stages |

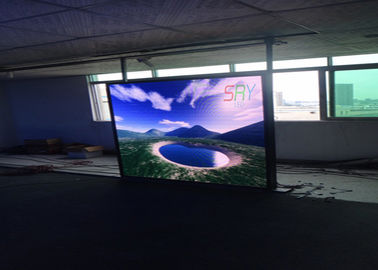

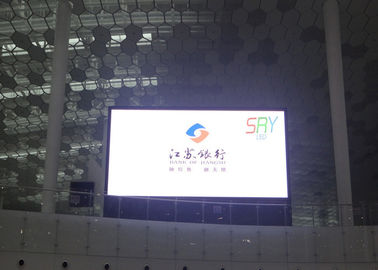

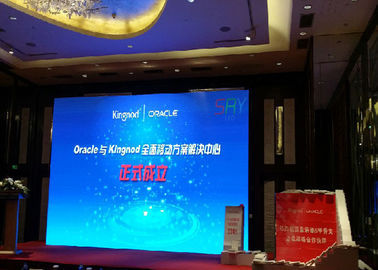

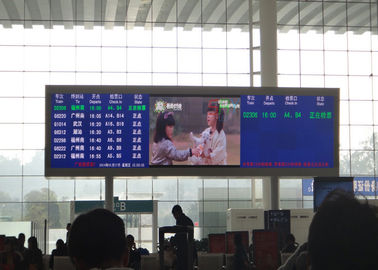

Product images:
