Front Maintenance P10 LED Display Module 1R1G1B DIP346 320mm x 320mm

Large Image : Front Maintenance P10 LED Display Module 1R1G1B DIP346 320mm x 320mm

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY-OF-P10

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	US$ 80 ~ 85 / PCS
Packaging Details:	Free Charge Carton(20pcs in one carton)
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	3,000 PCS per Month

Contact Now

Detailed Product Description

Pixel Pitch:	10mm	LED Encapsulation:	DIP346
Module Size:	320mm X 320mm	Drive Duty:	1/4scan Constant Current
Module Weight:	1.6kg	Waterproof:	IP65
Brightness:	7,500cd/sqm	Warranty:	2 Full Years
High Light:	Indoor LED Display Module , full color LED Display Module

Front Maintenance P10 LED Display Module 1R1G1B DIP346 320mm x 320mm

Decription:

P10 Outdoor Front Maintenance Full Color 320mm x 320mm Waterproof LED Module. The cabinet with this kind modules, its thickness can be designed thinner than traditional cabinets. It saves raw materials. During working if the modules malfunctioning, manitenance be comes more convenient. It saves time in maintaining. Because of the modules are easy to install and uninstall.

Features:

1. High brightness: >7,500cd/sqm

2. Best viewing distance: 10m ~ 100m

3. Best viewing angle: H: 120°; V: 70°

4. Max power consumption: 750W/sqm

Specificition:

Pixel Pitch	10mm
Pixel Density	10,000dots/sqm
Color Configuration	1R1G1B
LED Encapsulation	DIP346
Module Size	320mm x 320mm
Module Resolution	32dots x 32dots
Drive Duty	1/4 Constant Current
Brightness	>7,500nits
Viewing Distance	10m - 100m
Viewing Angle	H: 120°; V: 70°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V-20A, AC110V/ 220V/ 50HZ
Max Power Consumption	750W/sqm
Ave. Power Consumption	250W/sqm
Storage Temperature	-40℃ ~ +80℃
Working Temperature	-20℃ ~ +60℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof	IP65
Operating Humidity	10%~95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Supermarket, large scale shopping mall, exclusive agency, chain store, star rated hotel, restaurant, travel agency, pharmacy and etc outside wall mounted advertising use.

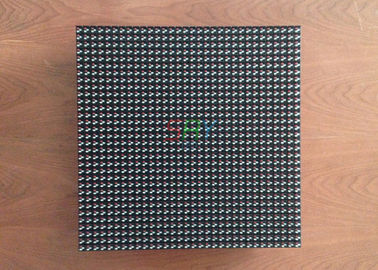

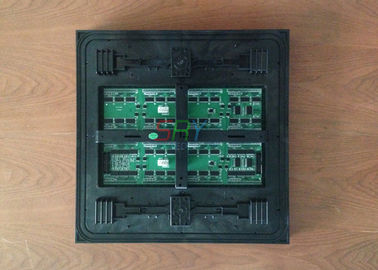

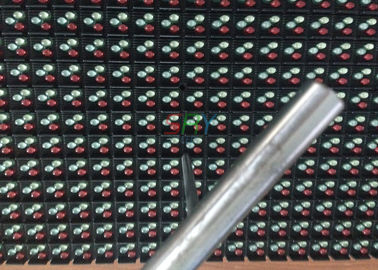

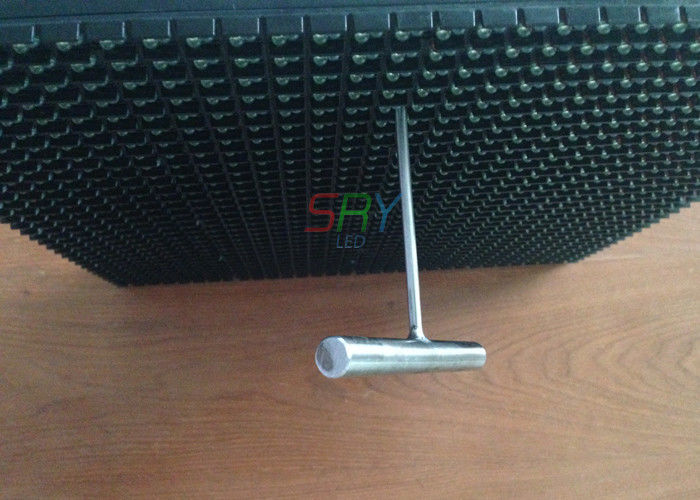

Module Pictures:

Front Maintenance P10 LED Display Module 1R1G1B DIP346 320mm x 320mm
