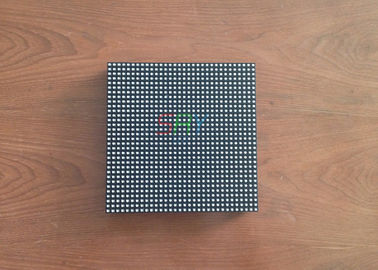

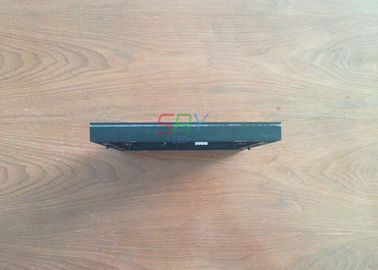

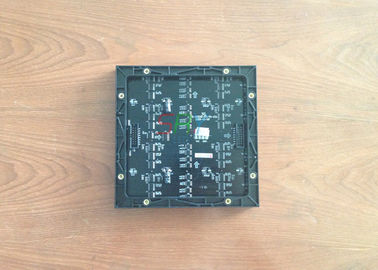

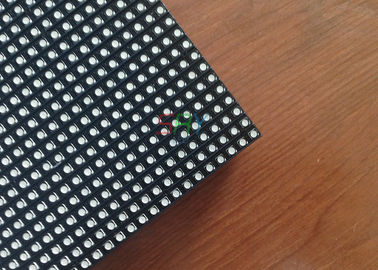

P5 SMD3528 Full Color LED Display Module 1/8 Scan Constant Current 160mm x 160mm

Large Image : P5 SMD3528 Full Color LED Display Module 1/8 Scan Constant Current 160mm x 160mm

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY - IF -P5

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	US$ 13.5 ~ 14.5 / PCS
Packaging Details:	Free Charge Carton(80pcs in one carton)
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	3,000 PCS per Month

Contact Now

Detailed Product Description

Pixel Pitch:	5mm	LED Encapsulation:	SMD3528
Module Size:	160mm X 160mm	Drive Duty:	1/8scan Constant Current
Module Weight:	0.26kg	MTBF:	10,000hrs
Lifespan:	100,000hrs	Warranty:	2 Full Years
High Light:	LED screen Module , full color LED Display Module

P5 SMD3528 Full Color LED Display Module 1/8 Scan Constant Current 160mm x 160mm

Decription:

High Brightness P5 Indoor SMD3528 Full Color 1/8scan 160mm x 160mm LED Module. Using a half more drive ICs to achieve high definition and high brightness.

Features:

1. Brightness: >2,500nits

Using more ICs than 1/16scan P5 to achieve higher brightness

2. Cabinet splice

Mobilize the modules ensure the cabinet seamless

3. High refresh frequency

Using more ICs than 1/16scan P5 to achieve higher refreah rate

4. High protection grade

Painting conformal coating to achieve moisture-proof, anti-corrosion, anti-mildew and anti-

electromagnetic capabilities

Specificition:

Pixel Pitch	5mm
Pixel Density	40,000dots/sqm
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3528
Module Size	160mm x 160mm
Module Resolution	32dots x 32dots
Drive Duty	1/8 Constant Current
Brightness	>2,500nits
Viewing Distance	5m ~ 50m
Viewing Angle	H: 120°; V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V-20A, AC110V/ 220V/ 50HZ
Max Power Consumption	800W/sqm
Ave. Power Consumption	270W/sqm
Storage Temperature	-40℃~+80℃
Working Temperature	-20℃~+60℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Operating Humidity	10%~95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
