| Pixel Pitch: | 5mm | LED Encapsulation: | SMD3528 |
|---|---|---|---|
| Module Size: | 160mm X 160mm | Waterproof: | IP65 |
| Brightness: | 6500 Nits | Display Size: | 960mm X 320mm |
| Control Way: | 3G / 4G / WIFI | Display Weight: | 25KG/unit |
| High Light: | taxi top LED display,taxi roof LED display |
||
1R1G1B 3in1 Wireless LED Display 6500nits LED Mobile Billboard For Taxi
Decription:
1, Led taxi roof sign , double-sided, could reach more people as possible.
2, Easy for installation, we could provide a special structure for isntallation if you like.
3, With High brightness, make the display content visible even under sunshine during daytime.
4, IP65 waterproof design, total outdoor use application.
5, Large viewing angle , full color, high color uniformity and clear image, bring you a vivid audio visual effect.
6, Epistar, Silan, Cree, Nichia, etc LED chip available.
Application:
Taxi top roof, car roof, bus rear side.
Our Service:
1, Could provide LED display project support and do investigation in local places since our customers start the LED display project budget.
2, Customized LED screen software and hardware products will be provided base on customers’ requirements.
3, Provide LED screen technical training (factory or on-site) for different customers.
4, Drawings like steel structure drawing, connection drawing, etc can be provided after the order.
5, Timely online services are provided whenever there is software operational problems and we’ll solve problems as soon as possible in working with our customers.
Specificition:
|
Pixel Pitch |
5mm |
|
Pixel Density |
40,000dots/sqm |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3528 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Duty |
1/8 Constant Current |
| Display Size | 960mm x 320mm x 2 sides |
|
Brightness |
>1500nits |
|
Viewing Distance |
5m ~ 50m |
|
Viewing Angle |
H: 120°, V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
300W/unit |
|
Ave. Power Consumption |
90-120W/sqm |
|
Storage Temperature |
-40℃ ~ +80℃ |
|
Working Temperature |
-20℃ ~ +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 for each side |
|
Operating Humidity |
10% ~ 95% |
|
Control System |
3G/4G/WIFI |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |

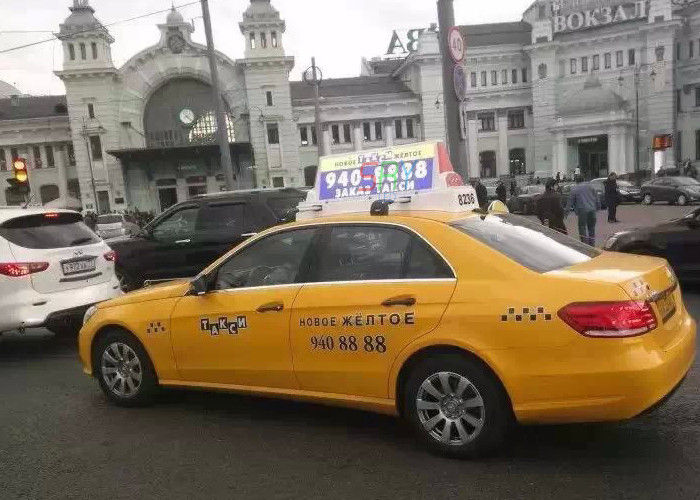

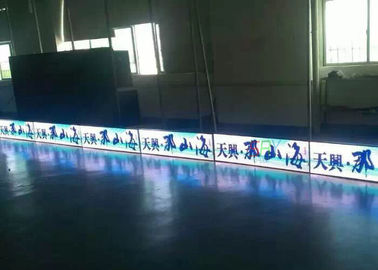

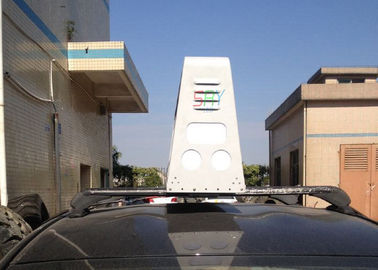

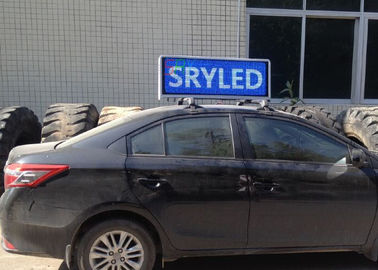

Product Pictures:
