Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | LED Type: | SMD3528 |
|---|---|---|---|
| Waterproof: | IP65 | Brightness: | 1500 Nits |
| Display Size: | 960mm X 320mm | Control Way: | 3G / 4G / WIFI / GPRS |
| Show Content: | Video, Image, Message | Cabinet Side: | Double Side |
| High Light: | taxi top LED display,taxi roof LED display |
||
P5 Waterproof Taxi LED Display 960x320mm High Brightness Electronic Message Boards
Decription:
1. High brightness. We use outdoor SMD P5 led modules, brightness up to 6500cd/sqm, completely suitable for outdoor use.
2. Easy to operate. Video and images can be updated via mobile phone, it is very convenient.
3. Double side. People can see the led sign from every direction.
4, Light weight. Each unit weight is only 25KG/pcs.

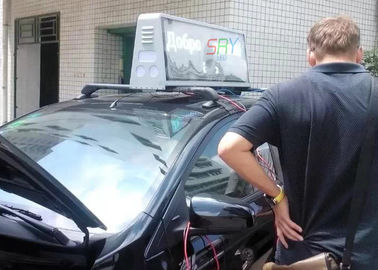

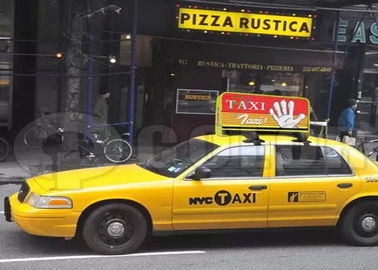

Outdoor LED Taxi Top Display is a new type of electronic media advertising with elegant and attractive
appearance, mainly installed on taxis, buses and other vehicles as a terminal carrier, the purpose is to form a new generation of networked, intelligent, digital outdoor media. This media is an integration of
outdoor, electronics, mobile and WiFi etc.
Large viewing angle Horizontal 120 degree, vertical 120 degree.
Original and vivid display effect will be seen in this scope with color excursion free and image distortion free.
6500cd/m2 brightness can be installed in different environment. Energy-saving and Environmental friendly design.
A variety of connection mode, real-time information publish.
Outdoor Taxi Roof Wideo LED Fullcolor Display had variety data comunications transferring, such as 3G, WIFI, TCP/IP etc, the message data were update without time and the area limited!
Asynchronous full color, 3G wireless cluster control system
Specification:
|
Pixel Pitch |
5mm |
|
Pixel Density |
40,000dots/sqm |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3528 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Duty |
1/8 Constant Current |
| Display Size | 960mm x 320mm x 2 sides |
|
Brightness |
>1,500nits |
|
Viewing Distance |
5m ~ 50m |
|
Viewing Angle |
H: 120°, V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
300W/unit |
|
Ave. Power Consumption |
90-120W/sqm |
|
Storage Temperature |
-40℃ ~ +80℃ |
|
Working Temperature |
-20℃ ~ +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 for each side |
|
Operating Humidity |
10% ~ 95% |
|
Control System |
3G/4G/WIFI |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
