Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | LED Encapsulation: | SMD3535 |
|---|---|---|---|
| Drive Duty: | 1/4 Constant Current | Module Size: | 320mm X 160mm |
| Cabinet Size: | 960mm X 960mm | Cabinet Color: | Grey, Black, White |
| Cabinet Weight: | 45kg | Waterproof: | IP65 |
| High Light: | outside advertising boards,full color led screen |
||
Wall Mounted Outdoor Full Color LED Display 1/4 Constant Current Waterproof LED Screen
Decription:
3. Waterproof: IP65 makes sure the display screen keep working in raining days.
4. Wide viewing angle: H: 120º, V: 120º .
2. Screen working humidity: 10% - 95%.
3. Screen working temperature: -20ºc - +60ºc.
4. Energy saving design makes sure low power consumption.
Specificition:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10,000dots/sqm |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3535 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Duty |
1/4 Constant Current |
|
Brightness |
>6,500nits |
|
Viewing Distance |
10m - 100m |
|
Viewing Angle |
H: 120°, V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 40A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
750W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
|
Business Organizations |
Supermarket, large-scale shopping malls, exclusive agency, chain shops, largescale sales, starrated hotels, restaurants, travel agencies, pharmacy. |
|
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools; |
|
Public Places |
Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |

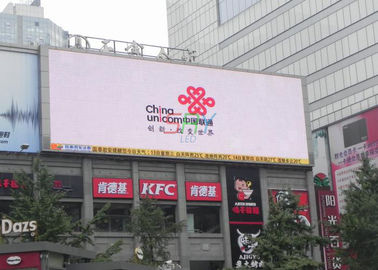

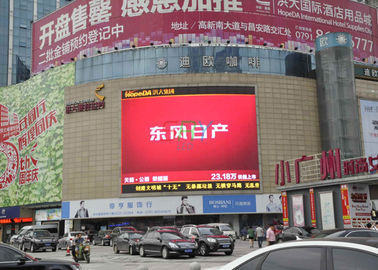

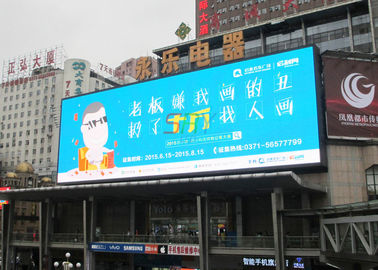

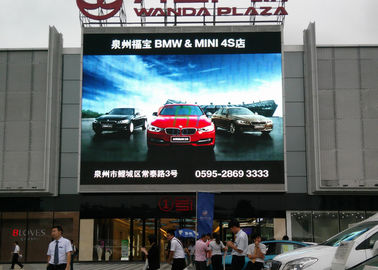

Application Pictures:
Competitive Advantages:
1. CE, LVD, RoHS certified, 2 full years warranty.
2. High brightness, high definition, wider viewing angle. Waterproof IP: 65.
3. Longlife span, energy-saving design and lower power consumption.
