Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | Color Configuration: | 1R1G1B 3in1 |
|---|---|---|---|
| LED Encapsulation: | SMD3535 | Module Size: | 192mm X 92mm |
| Cabinet Weight: | 45kg | Cabinet Size: | 960mm X 960mm |
| Waterproof: | IP65 | Warranty: | 2 Full Years |
| High Light: | outdoor advertising LED display,outside advertising boards |
||
6500nits Brightness video LED display P6 , rgb Led Advertising Display
Outdoor 6,500nits Brightness P6 Full Color LED Display IP65 Outdoor Led Advertising Display. Outdoor fixed installation: stage main screen and street side screen.
3. Energy saving design
Max. power consumption: 1,000W/sqm
Ave. power consumption: 330W/sqm
4. Great heat disspation design
Specification:
|
Pixel Pitch |
6mm |
|
Pixel Density |
27,777dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3535 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x32dots |
|
Cabinet Size |
960mm x 960mm |
|
Cabinet Resolution |
160dots x 160dots |
|
Drive Duty |
1/8 Constant Current |
|
Brightness |
>6,500nits |
|
Viewing Distance |
6m - 60m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC 110V - 220V ±15%, 50HZ |
|
Max Power Consumption |
1,000W/sqm |
|
Ave. Power Consumption |
330W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
| Waterproof | IP65 |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
45kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Widely using for theater, stadium, showroom, stage, monitoring room and etc.

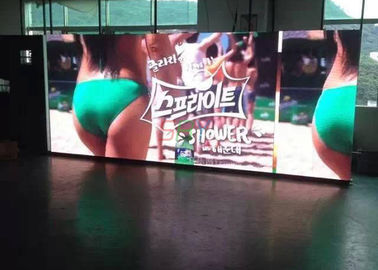

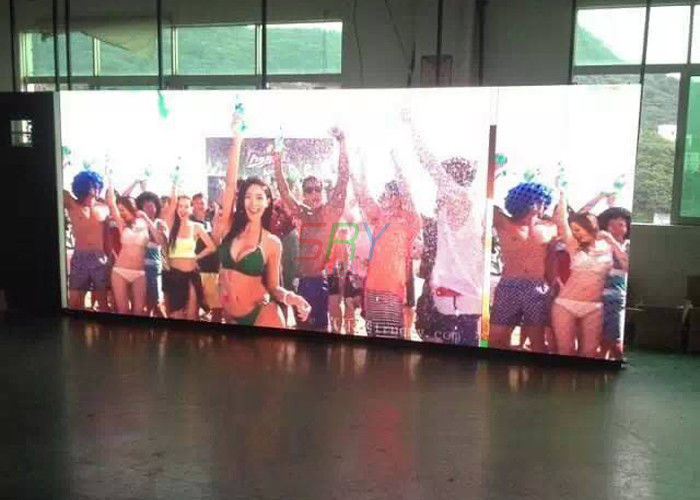

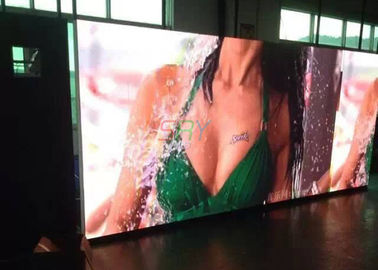

Cabinet Pictures:
Our Pre-sale Service
1. Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
2. Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
3. Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.
4. Spare parts: necessary spare parts are provided together with products to customers.
5. Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
6. Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
7. Site instruction service of installation is available.
