Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Confirguration: | 1R1G | Brightness: | Over 5000nit |
| Application: | Outdoor | Show Content: | Message, Animation |
| Waterproof: | IP65 | Material: | Iron Or Aluminum Cabinet |
| High Light: | programmable led display,led scrolling message display |
||
Dual Color LED Moving Message Display Board 5000nit IP65 Moving LED Sign
Description
1. Standard display size: 5.76m x 0.48m, 9.6m x 0.64m, 2.56m x 0.48m, the led display size can be customized, width is N times of 320mm, height is N times of 160mm, N can be 1, 2, 3, 4, 5 etc.
2. Signal connection cable interface is USB(default), RS232, RS485, WIFI, 3G or TCP/IP network.
3. Product can support all the languages in the world, English, Spanish, Russsian, French etc.
4. 25 actions (Snow, Spray, Twinkle, Rotate, Scroll, Star Burst, Wipe, Interlock)
5. Display function is text message, graphic and animation
Features
1. Display English and other characters, graphic symbol and simple animations
2. Stores up to 99 messages
3. 7 Fonts, each with regular, bold and wide mode; 66 other European characters
4. 25 methods of displaying your message (Cyclic, Scroll up, Scroll down, Open to Center, Open from Right, Open from left….)
5. Approximately 7000 characters of memory space to store messages
6. Built-in timer to power on/off during the day
7. Built-in real time clock with 12-hour or 24-hour display format
Application

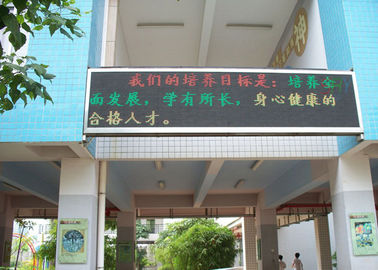

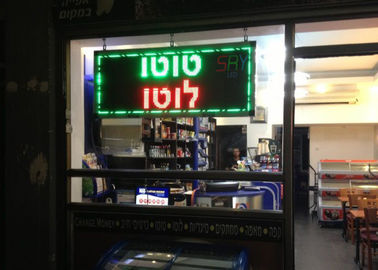

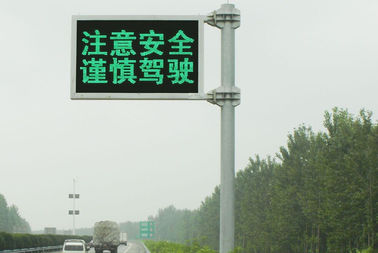

Air station, bus station, railway station, subway station, school, hospital, park, shopping mall, market, bank, bus, taxi roof, high way, shop, post office etc
Competitive Advantages
1, Low power consumption
2, Size is customized
3, Convinient to control led display by wireless
Specification
| Unit module | PCB | 2 layers |
| Module size | 320mm(W)*160mm(H) | |
| Pixel pitch | 10mm | |
| Pixel Density | 10000dots/m2 | |
| LED specification | ø5 ellipse | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Weight | 0.55kg | |
| Optical parameter | Best viewing distance | 10~100m |
| Best viewing angle | 120°(H)/60°(V) | |
| Pixel configuration | 1R1G | |
| Brightness of while balance | ≥5500cd/SQM | |
| Electrical parameter | Working voltage | 5V |
| Max Power consumption | 26W | |
| Current | ≤20mA (single/dual LED) | |
| Driving device | IC Constant Voltage driver | |
| Drive type | 1/4 Scanning | |
| Refresh frequency | ≥120Hz | |
| Control system | Control system | Single/dual color controller |
| Software | Ledshow LedEditor PowerLed | |
| Operating system | Windows XP/Win7/Win8 | |
| Control method | Asyn-synchronous control | |
| Communication distance | ≤100m(UTP-5 CABLE) | |
| Main technical parameter | Operating environment | Outdoor |
| IP Grade | IP65 | |
| Storage temperature | -40°C~60°C | |
| Working temperature | -30°C~50°C | |
| Operation humidity | 10%~90% | |
| MTBF | ≥9000 hours | |
| Life span | ≥50000 hours | |
| Malfunction dot rate | ≤1/10000 | |
| Flatness | Tolerance of interpixel ≤ 0.3mm | |
| Tolerance of modules clearance≤0.6mm |

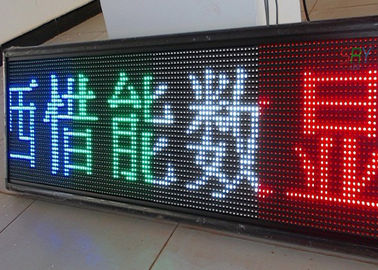

Product Images
