Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | 110V - 220V ± 5%, 50HZ | Warranty: | 2 Full Years |
|---|---|---|---|
| Cabinet Material: | Stainless Stell | Lifespan: | 100,000hours |
| High Light: | LED information display,programmable led display |
||

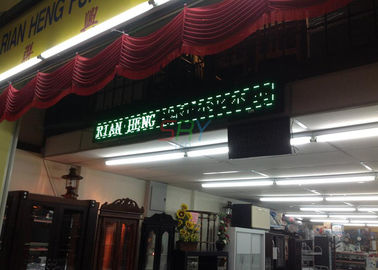

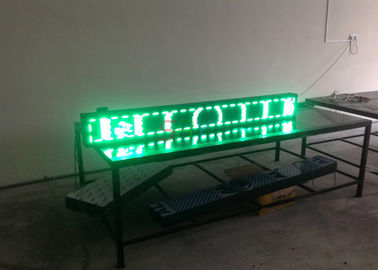

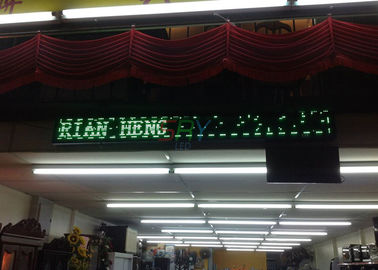

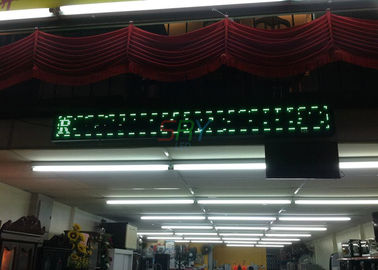

High Brightness Trivision LED Text Display / outdoor led message boards P10 Single Green
Quick Information
Outdoor Pure Red P10 Single Color LED Moving Message Sign, Text Scrolling Display creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P10 Outdoor Full Color LED Display Screen in many occasions.
1. Pixel Pitch: 10mm
2. Color Configuration: 1G
3. LED Encapsulation: DIP546
4. Module Size: 320mm x 160mm
5. Cabinet Size: 1,920mm x 160mm
6. Cabinet Material: Stainless Steel
Features
1. High brightness meet the needs of various application environments.
2. Energy saveing design and good performance in color uniformity.
3. Superb workmanship to ensure every processing details.
4. Environmental raw material (LED chips, mask, glue, and steel cabinets).
5. Large viewing angle. Horizontal:120 ° , Vertical: 70°.
Specifications
| Item | Unit | Parameter |
| Pixels(Pixel Pitch) | mm | 10mm |
| Pixel Density | dots/sqm | 10,000dots/sqm |
| Color Configuration | 1G | |
| LED Encapsulation | DIP546 | |
| Drive Duty | scan | 1/4scan |
| Cabinet Resolution | dots | 192dots x 16dots |
| Cabinet Size | mm | 1920mm x 160mm |
| Cabinet Weight | kg | ≈15kg |
| Brightness | nits | >2,500nits |
| Best Viewing Distance | m | 10m - 100m |
| Best Viewing Angle | ° | H:120 °, V: 70° |
| Lifespan | hours | >100,000hours |
| MTBF | hours | >10,000hours |
| Working Temperature | Celsius | -20Celsius - +60Celsius |
| Working Humidity | 10% - 95%RH | |
| Warranty | 2 Full Years | |
| Certificate | CE, LVD, RoHS |
5. Stable quality and fast Response
6. Short delivery,effective production
7. Sample order,trial order be acceptable
