Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Led Chip: | DIP546 | Color: | White |
| Brightness: | Over 2500nit | Application: | Outdoor, Semi-outdoor |
| Show Content: | Message, Animation | ||
| High Light: | LED information display,led scrolling message display |
||
Multi Language DIP LED Message Board 320mm × 160mm LED Information Display
Description
1, It displays 16 Western characters or 8 Asian Characters.
2, 11 twinkled animation embedded and a brightness font.
3, Brightness and temperature can be automatically adjust by install a sensor.
4, The Software uses Under Windows Vista/XP/2000/98/ Win7/Win8.
5, Support multi language, such as English, French, Janpanese etc.
Features
1. Display standard size, 2.56m x 0.48m, 4.8m x 0.64m, 9.6m x 0.96m etc.
2. Beside White, other color are available, red, green, blue, yellow and RGB.
3. Wireless /WIFI /3G /RS485 or RS232 BY PC.
4. Used for outdoor or semi-outdoor.
5. 25 actions (Snow, Spray, Twinkle, Rotate, Scroll, Star Burst, Wipe, Interlock)
6. Show content: Animation, graphic and message.
Application
Entertainment Complexes, Churches, Restaurants, Showrooms, Casinos, Convenience Stores, Banks, Government Facilities, Theatres , Stations, Bus, Taxi Roof, High Way, Shop, Post Office etc
Specification
| Model No. | 10mm |
| Module Size | 320mm x 160mm |
| Display Size | 1280mm x 320mm or customized |
| Max. Line | 2 lines, 16 English letters per line |
| Pixel configuration | 1W |
| Density of pixel | 10000dots/sqm |
| Best viewing angle | H: 120°V: 50° |
| Module weight | 0.5KG |
| Interface | HUB12 |
| Waterproof | IP65 |
| Max. power consumption | 100W/sqm |
| Luminance of white balance | ≥2000 nits |
| Driving mode | 1/4 Scan Constant current |
| Working voltage | AC 220V/50HZ |
| Working environment Temperature | -40~ +60°C |
| Related humidity | 10-90RH |
| Control Method | Remote and PC control |
| Specifications | 1.Message is programmable |
| 2.Can display all the languages | |
| 3.Can display 1-2 lines of message | |
| Certificates | CE, RoHS, LVD |
Our Service
1. Your inquiry related to our products or price will be replied in 24hrs
2. Export countries : USA, Mexico, Colombia, Turkey, France, Italy, Japan, Netherlands etc
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area,ideas of design and all your private information
5. Free training for software operation
6. 2 years warranty

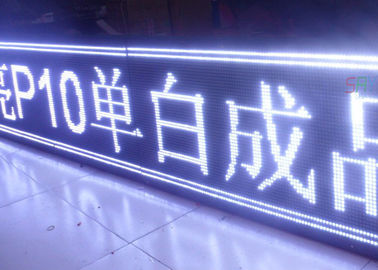

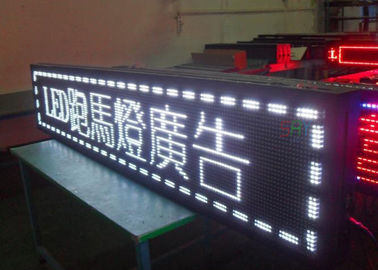

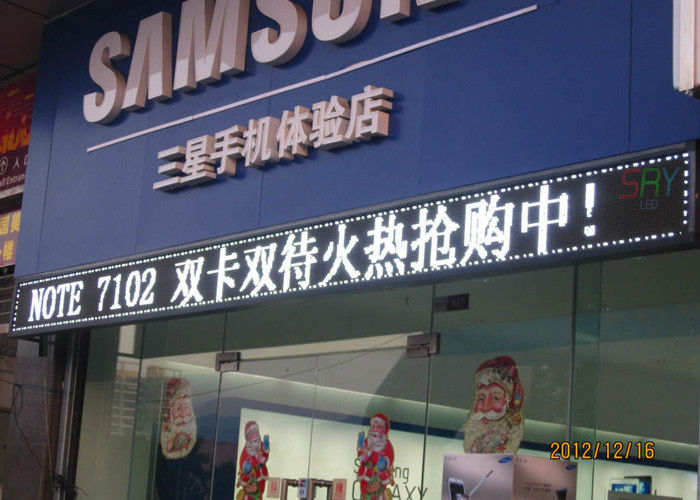

Product Images
