Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Led Chip: | DIP546 | Color: | White |
| Brightness: | Over 2500nit | Application: | Outdoor, Semi-outdoor |
| Control Way: | 3G/WIFI/RS232 | ||
| High Light: | LED information display,led scrolling message display |
||
DC 5V White LED Scrolling Message Display Wirless Moving LED Display Board
Description
1, It displays 16 Western characters or 8 Asian Characters.
2, 11 twinkled animation embedded and a brightness font.
3, Brightness and temperature can be automatically adjust by install a sensor.
4, The Software uses Under Windows Vista/XP/2000/98/ Win7/Win8.
5, Support all the languages in the world, English, Spanish, Russsian, French etc.
Features
1. Display standard size, 2.56m x 0.48m, 4.8m x 0.64m, 9.6m x 0.96m etc.
2. 8 programmable display speeds
3. Wireless /WIFI /3G /RS485 or RS232 BY PC.
4. 30 pre-graphic symbols such as phone, car, clock, rocket, etc.
5. 25 actions (Snow, Spray, Twinkle, Rotate, Scroll, Star Burst, Wipe, Interlock)
6. Display English and other characters, graphic symbol and simple animations
Application
Entertainment Complexes, Churches, Restaurants, Showrooms, Casinos, Convenience Stores, Banks, Government Facilities, Theatres , Stations, Bus, Taxi Roof, High Way, Shop, Post Office etc
Specification
|
Unit module |
PCB | 2 layers |
| Module size | 320mm(W)*160mm(H) | |
| Pixel pitch | 10mm | |
| Pixel Density | 10000dots/m2 | |
| LED specification | ø5 ellipse | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Weight | 0.55kg | |
|
Optical parameter |
Best viewing distance | 10~100m |
| Best viewing angle | 120°(H)/60°(V) | |
| Pixel configuration | 1W | |
| Brightness of while balance | ≥2500cd/SQM | |
|
Electrical parameter |
Working voltage | 5V |
| Max Power consumption | 26W | |
| Current | ≤20mA (single/dual LED) | |
| Driving device | IC Constant Voltage driver | |
| Drive type | 1/4 Scanning | |
| Refresh frequency | ≥120Hz | |
|
Control system |
Control system | Single/dual color controller |
| Software | Ledshow LedEditor PowerLed | |
| Operating system | Windows XP/Win7/Win8 | |
| Control method | Asyn-synchronous control | |
| Communication distance | ≤100m(UTP-5 CABLE) | |
|
Main technical parameter |
Operating environment | Outdoor |
| IP Grade | IP65 | |
| Storage temperature | -40°C~60°C | |
| Working temperature | -30°C~50°C | |
| Operation humidity | 10%~90% | |
| MTBF | ≥9000 hours | |
| Life span | ≥50000 hours | |
| Malfunction dot rate | ≤1/10000 | |
| Flatness | Tolerance of interpixel ≤ 0.3mm | |
| Tolerance of modules clearance≤0.6 |
Service and Trade Term
1. Two years warranty
2. CE & RoHS certificated
3. 24/7 hrs inquiry reply
4. Trade terms, EXW, FOB, CIF, DDU
5. 30% deposit before production,70% balance before delivery

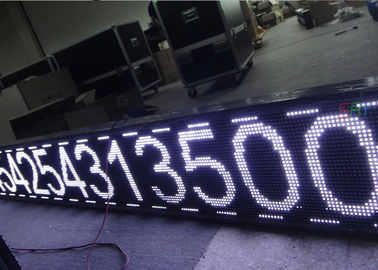

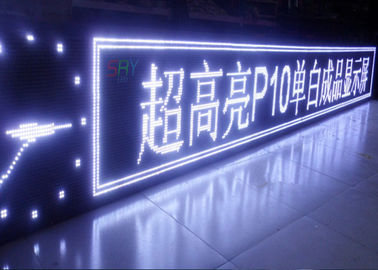

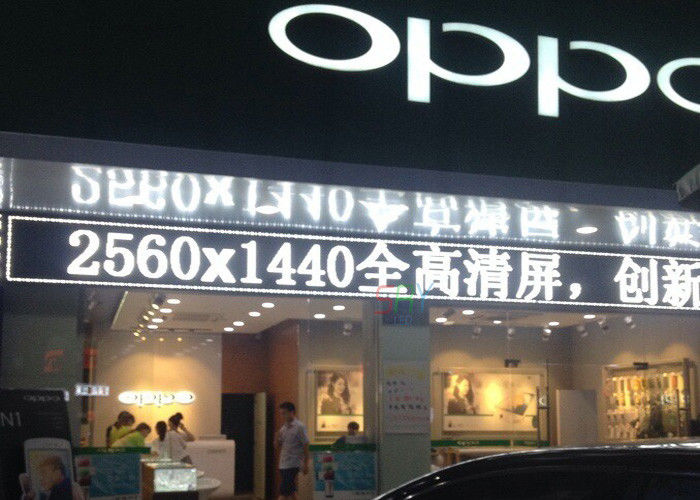

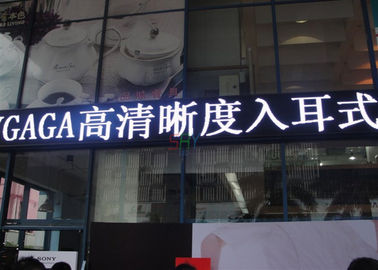

Product Images
