Product Details:
Payment & Shipping Terms:
|
| Name: | LINSN Sending Card | Support Color: | Full Color |
|---|---|---|---|
| Connection: | Synchronous | Input Source: | DVI, S-video, RGB, VGA |
| Support Pixel: | 2048 X 640 | Certification: | CE, RoHS |
| High Light: | Led Screen Sending Card,LED display Sending Card |
||
Quick Detail
1. Control range: 2048 x 640 pixel
2. Free part: DVI-USB cable, CD
3. Weight: 300g
4. Size:144mm X 91mm
5. Working voltage: DC 5-12V
6, Software is Led Studio
1, This Linsn TS802 sending card need to work with Linsn RV901 or RV908 receiving card.
2, Britness and temperature sensore are supported.
3, Used in the synchronous controller system.
4, Upgrade version of TS801.
Specification
1. 802 sending card including full-color sending card TS802 and dual-color sending card DS802.
Full-color sending card supports full-color, dual-color and single color led display
Dual-color sending card supports dual-color and single color led display.
2. 802 sending card max supports 2048*640
3. Supporting display mode: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024
1440*900 1440*1080 1600*1200
1680*1050 1728*1296 1920*1080 1920*1200 2048*1152 2048*1280
4. Audio Transmission Function802 sending card sends audio data using network cable, and Function
board outputs audio signals to the display. Double 24bits 64KHZ hifi digital signal to analog signal
or analog signal to digital signal, making display have the perfect video effect.
5. Cascade functionThrough the dig switch on 802 sending card, several 802 sending cards can be
easily cascaded to support a super large led display
6. Sending card U/D port flexibility for carrying half width or half heightFor example, TS801 can max
support 1280*1024 with two portsA single network output port supports 1280*512 or 640*1024
7. Sending card rotation functionIn Sender setting, sending card has 0, 90, 180, 270 degree rotation function
8. Sending card zoom in/out functionIn Sender setting, the ratio of width and height can be set to
realize zoom in or zoom out
9. Supporting 10-bit colors The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.
The eighth supports 10bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work
with our video processors using the 30 bits TTL.
10.Multi-display synchronous and combination functions.One sending card can control multidisplays,
realizing displays combination, synchronous display, and independent play.

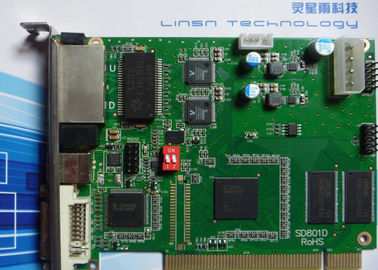

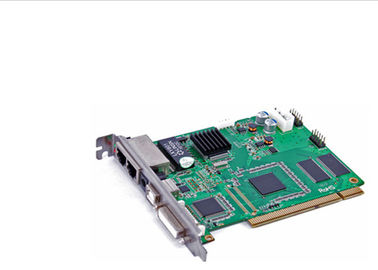

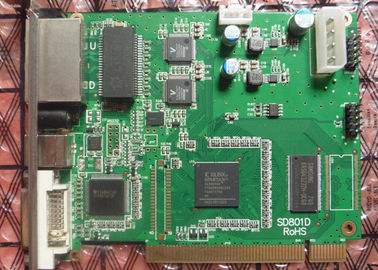

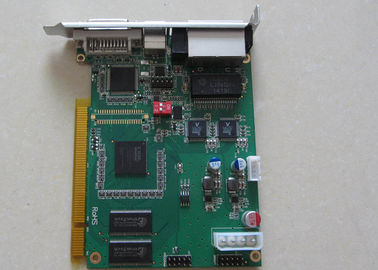

Product Images
