Product Details:
Payment & Shipping Terms:
|
| Name: | RV908 Receiving Card | Support Color: | Full Color |
|---|---|---|---|
| Connection: | Synchronous | Input Source: | DVI, S-video, RGB, VGA |
| High Light: | Led Screen Sending Card,LED display Sending Card |
||
RV908 receiving cards are products designed specifically for the standardization manufacturers: Free of hub card design, completely compatible with RV801 function, the same size of RV801, equivalent to RV801 plus HUB75. Besides, RV908 add the following functionality:
1. Onboard the 12 16-Pin interface of HUB75 the, no extra hub needed
2. support 12-bit HDMI colors input (required the 9th generation sending card)
3. using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)
4. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction
5. Supports single-card color space conversion
6. Support program replication
7. Supports hot backup with dual receiver cards for demanding performances screen
8. Supports pixel fault detection (requires a dedicated chip support)
9. Support network cable BER test
10. Support flat cable fault detection
12. Support the cabinet-door monitoring (open/close)
13. Two lines fan-speed monitoring
14. Three lines Voltage monitoring: one for the system, two for cabinet power
15. Temperature monitoring
15. Humidity monitoring (humidity sensor sold separately)
16. Smoke monitoring (smoke module sold separately)
17. In line with EU standards CE-EMC

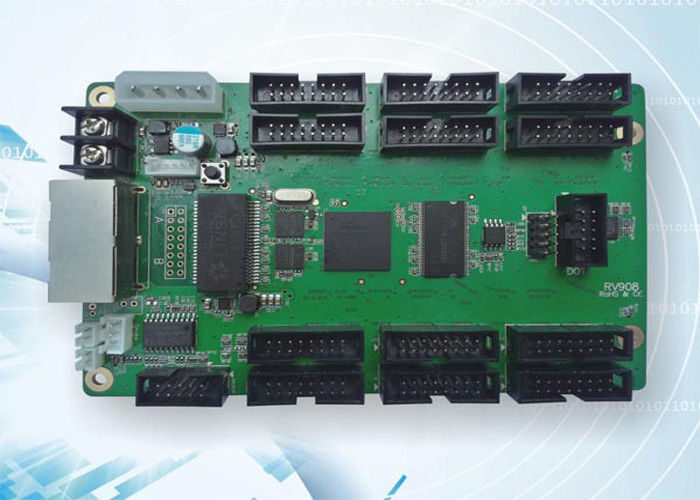

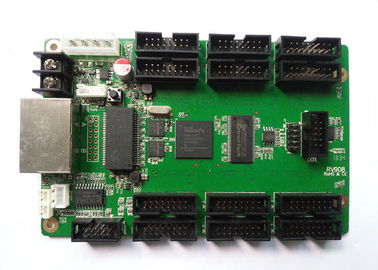

Product Images
