| Name: | Led Video Processor | Support Color: | Full Color |
|---|---|---|---|
| Application: | Live Show, Concert, News Conference | Input Source: | DVI, S-video, RGB, VGA |
| High Light: | LED display Sending Card,led screen video processor |
||
1. 10+ Bit Faroudja® DCDI Cinema Processing
2. New Faroudja® Real Color®
3. Faroudja® TureLife™ Video Enhancer
4. Advanced 4x4 Pixels Interpolation Scaling Algorithm
5. HDMI 1.3a with HDCP, HD 1080P input
6. SDI / HD-SDI / 3G-SDI (1080P) Input
7. 10-bit Processing
8. Seamless Switching, Fade-in / Fade-out switching & Blend switching in random input signals
9. HD Text, Flash, Graphics & Logo Overlay
10. 4 custom PIP / POP display modes, which can be switched by pressing one button
11. Hot Spare function, display will be stable and reliable
12. Picture Freeze function
13. AIAO( Any In Any Out ) function allows for displaying any capturing picture in specific area on the screen
14. 2304 x 1152 or 2560 x 816 output for single machine
15. Multi-machine in parallel, multi-unit installed in parallel drive indefinite LED lattice
16. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command
for operating and setting
17. Press keys or knob on frontal panel to directly select 10-channel input signal source,including:
3×CVBS 1×DVI 1×HDMI
2×VGA 1×YPbPr / YCbCr 1×S-Video
1×EXT.( extended modle , can be VIDEO or SD I / HD-SDI / 3G-SDI or VGA / DVI / HDMI )
18. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI and SDI audio,
there are 5-channel audio for synchronous switch
19. 2 LED Transmission Cards Built-in ability ( sending cards are optional )
20. 24 / 7 Application
|
Inputs |
||
|
Nums / Type |
3×Composite |
|
|
Video system |
PAL / NTSC |
|
|
Composite Video |
1V(p_p)/ 75Ω |
|
|
S-video Scope / |
Y:1.0V(p_p)/ 75Ω,C:0.35V(p_p)/ 75Ω |
|
|
VGA Format |
PC(VESA) |
≤2048x1152@60Hz |
|
VGA Scope / Impedance |
R,G,B = 0.7 V(p_p)/ 75Ω |
|
|
DVI Format |
SD / HD(CEA-861) |
≤1920x1080@60Hz |
|
PC(VESA) |
≤2048x1152@60Hz |
|
|
HDMI 1.3 Format( HDCP ) |
SD / HD(CEA-861) |
≤1920x1080@60Hz |
|
PC(VESA) |
≤2048x1152@60Hz |
|
|
YPbPr Format |
SD / HD(CEA-861) |
≤1920x1080@60Hz |
|
YPbPr Scope / Impedance |
Y= 1.0V(p_p)/ 75Ω |
|
|
SDI format |
SDI-SMPTE 259M-C |
576i @50Hz 480i @60Hz |
|
HD-SDI |
HDSDI-SMPTE 292M |
≤1920 x 1080@50Hz / 60Hz |
|
AUDIO Scope / Impedance |
2.0Vp-p / 10KΩ |
|
|
Input Connectors |
VGA:15pin D_Sub( Female ) |
|
|
Outputs |
||
|
Nums / Type |
1×VGA(RGBHV) |
|
|
VGA / DVI Format |
1024×768@60Hz / 75Hz |
|
|
VGA Scope / Impedance |
R,G,B = 0.7 V(p_p)/ 75Ω |
|
|
Output Connectors |
VGA OUT:15pin D_Sub( Female ) |
|
|
Others |
||
|
Control |
Panel Button / Knob / RS232 |
|
|
Power |
100-240VAC 35W 50 / 60Hz |
|
|
Operating Temp |
5-40 ℃ |
|
|
Humidity |
15-85% |
|
|
Dimensions(Package) |
145 mm (height) ×370mm (width) ×535mm (length) |
|
|
Weight(G.W.) |
5.0 Kg |
|
|
Weight(N.W.) |
3.2Kg |
|
Application
Large venus display applications such as: Rental Performance, TV broadcast center, large-scale stage and theatre, high-end meeting, exhibition etc.

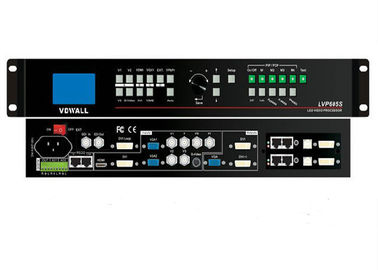

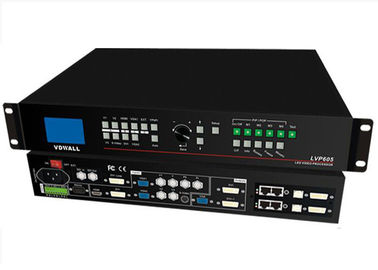

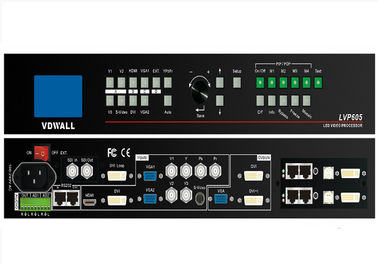

Product Images
