| Name: | Led Video Processor | Support Color: | Full Color |
|---|---|---|---|
| Application: | Live Show, Concert, News Conference | Input Source: | DVI, Video, SDI, VGA, HDMI |
| High Light: | LED display Sending Card,led screen video processor |
||
1. 10+ Bit Faroudja® DCDI Cinema Processing
2. New Faroudja® Real Color®
3. Advanced 4x4 Pixels Interpolation Scaling Algorithm
4. HD Text, Flash, Graphics & Logo Overlay

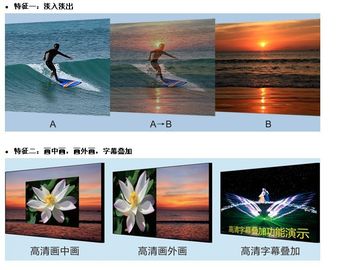

5. Seamless Switching,Fade-in / Fade-out

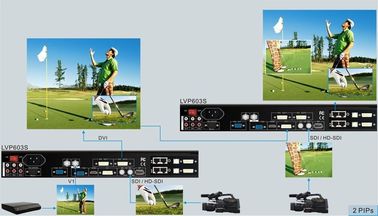

6. Unrestricted HD Picture-In-Picture ( PIP ) & Picture-Off-Picture( POP )
7. Independent H & V Scaling Ratios
8. HDMI 1.3a with HDCP, HD 1080p input
9. SDI / HD-SDI / 3G-SDI ( 1080p ) Input
10. 1920 x 1080p or 1600 x 1200 output for single machine
11. Multi-machine in parallel, 6 x 6 in parallel can connect 11520 x 6480 LED screen
12. Fast 64-level output brightness adjustment
13. Easy setup and adjustment through keys on the panel
14. Press keys on frontal panel to directly select 7-channel input signal source, including:
1 x SDI / HD-SDI 1 x HDMI( with HDCP ) 1 x DVI
1 x VGA 1 x DP( DisplayPort ) 2 x CVBS
15. 2 channels can be configured to connect external stereo audio, plus DP, HDMI and SDI audio,
there are 5-channel audio for synchronous switch
16. 2 LED Transmission Cards Built-in ability (The processor does not include the Transmission card )
Specification
Inputs |
||||
|
Nums / Type |
2×Composite video |
|||
|
Video system |
PAL / NTSC |
|||
|
Composite Video |
1V (p_p) / 75Ω |
|||
|
VGA Format |
PC(VESA) |
≤1600x1200 @60HZ |
||
|
VGA Scope / Impedance |
R,G,B = 0.7 V (p_p) / 75Ω |
|||
|
DVI Format |
SD / HD(CEA-861) |
≤1920x1080P @60HZ |
||
|
PC(VESA) |
≤1600x1200 @60HZ |
|||
|
HDMI Format |
SD / HD(CEA-861) |
≤1920x1080P @60HZ |
||
|
PC(VESA) |
≤1600x1200 @60HZ |
|||
|
DP Format |
SD / HD(CEA-861) |
≤1920x1080P @60HZ |
||
|
PC(VESA) |
≤1600x1200 @60HZ |
|||
|
SDI Format |
SDI-SMPTE 259M-C |
576i @50HZ |
||
|
HD-SDI / |
HDSDI-SMPTE 292M |
|
||
|
Input Connectors |
VGA:15pin D_Sub ( Female ) |
|||
Outputs |
||||
|
Nums / Type |
1×VGA ( RGBHV ) |
|||
|
VGA / DVI Format |
1024×768@60Hz/75Hz |
|||
|
VGA Scope / Impedance |
R,G,B = 0.7 V (p_p) / 75Ω |
|||
|
Output Connectors |
VGA:15pin D_Sub ( female ) |
|||
Others |
||||
|
Control |
Panel Button |
|||
|
Power |
100-240VAC 60W 50 / 60Hz |
|||
|
Operating Temp |
5-40 ℃ |
|||
|
Humidity |
15-85% |
|||
|
Size |
135 mm (high) ×350mm (wide) ×510mm (length) |
|||
|
Weight |
3.9 Kg |
|||
Application
Rental performance,TV broadcast center, large-scale stage and theatre, high-end meeting, exhibition etc.

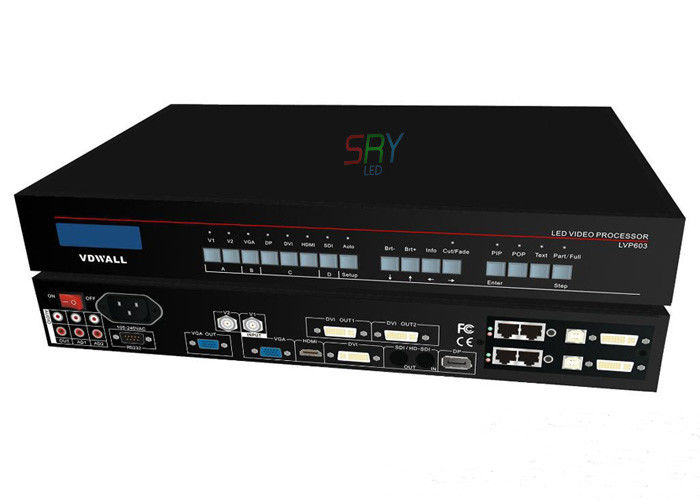

Product Images
