| Name: | Led Power Supply | Support Color: | Full Color, Single Color And Dual Color |
|---|---|---|---|
| Application: | Indoor And Outdoor | Power Volatage: | 110/220V |
| Consumption: | 200W | Current: | 40A |
| High Light: | LED display Sending Card,led screen video processor |
||
1, 200W Single Output Certified Power SupplyHigh reliability
2, Built-in EMI filter
3, Low output ripple&noise
4, Protections:Over load/Short circuit
5, Approvals:CE CCC
6, 2 years warranty
Specification
1, Case:808 Size ------------------199×110×50mm
2, AC input voltage range -------------------------- 176-264VAC
3, Input frequency --------------------------------- 47-63Hz
4, AC inrush current -------------------------------- Cold start,60A/230VAC
5, DC adjustment range ----------------------------- ±10% rated output voltage
6, Line regulation(full load)------------------------ ≤0.5%
7, Output over load protection ------- 110%-150% shut off, AC recycle to re-start
8, Rise,hold up time -------------------- 50mS,20mS at full load(typical)
9, Withstand voltage ------- I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
10, Working temperature----- -10~+40℃@100%,+60℃@60% load
11, Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
12, Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
13, EMC standards------- Design refer to GB9254,EN55022 class A
14, Cooling method---------------------Free air cooling convection
15, Product modelDC output Load regular.R&NEfficiencyA-200-55V,40A2%100mV78%A-200-1212V,16.7A1%120mV80%A-200-2424V,8.3A1%200mV83%

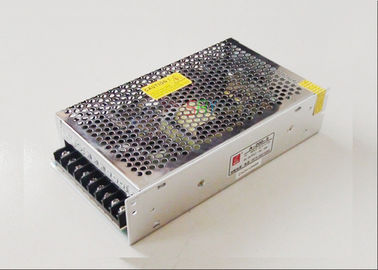

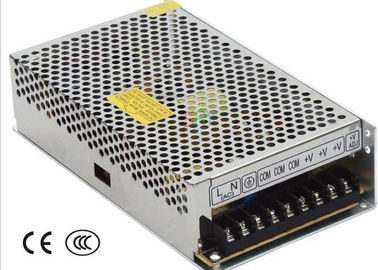

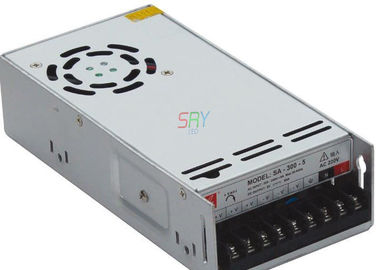

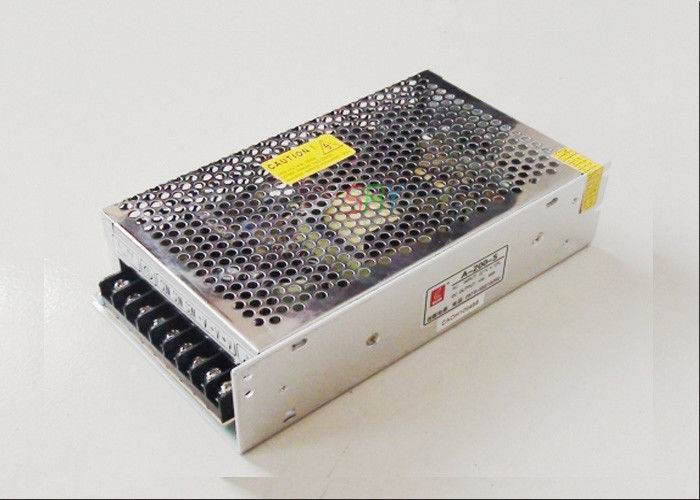

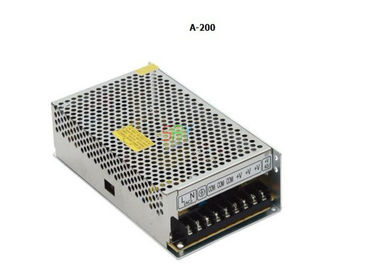

Product Images
