8mm Curved LED Display 4.80M X 6.72M Large Viewing Angle Waterproof LED Screen

Large Image : 8mm Curved LED Display 4.80M X 6.72M Large Viewing Angle Waterproof LED Screen

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY - OF - P8

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$ 850 ~ 920 / Square Meter
Packaging Details:	Wooden Case(wooden case size based on cabinet size, 2cabinets in 1 wooden case)
Delivery Time:	10 - 12 Work Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	8mm	LED Encapsulation:	SMD3535
Module Size:	256mm X 128mm	Drive Duty:	1/4scan Constant Current
Waterproof:	IP65	Brightness:	>6,500nits
Certificate:	CE, LVD, RoHS	Warranty:	2 Full Years
High Light:	curved led display , curved led panels

8mm Curved LED Display 4.80M X 6.72M Large Viewing Angle Waterproof LED Screen

Decription:

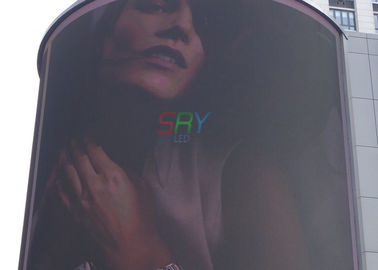

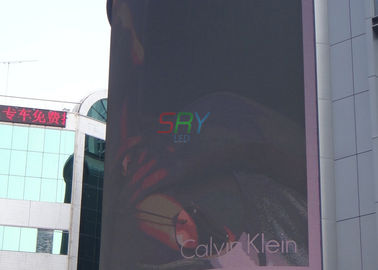

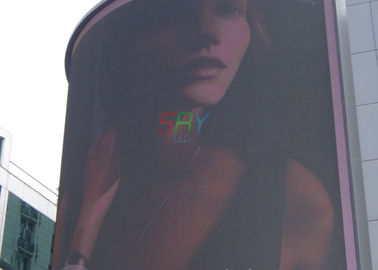

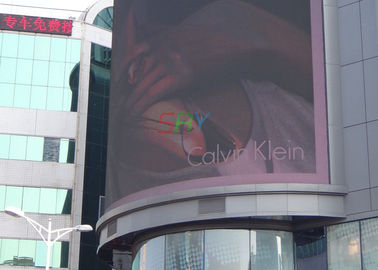

8mm HD Outdoor SMD3535 Full Color 4.80m x 6.72m Waterproof Curved LED Display. It overcomes the problems if the screen needs to be install on corner place.

And the P8, it controls the LEDs' display mode via constance current IC. And shows different colors via controlling brightness changes of the three-primary lamps.

Features:

1. Large viewing angle

Viewing angle: H: 120°, V: 120°

2. Long viewing distance

Viewing distance: 8m - 80m

3. Well waterproof

Waterproof: Front: IP65, Rear: IP54

4. Best post-sale service

Two full years, 24hrs at service

Specificition:

Pixel Pitch	8mm
Pixel Density	15,625dots/sqm
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3535
Module Size	256mm x 128mm
Module Resolution	32dots x 16dots
Drive Duty	1/4 Constant Current
Brightness	>6,500nits
Viewing Distance	8m - 80m
Viewing Angle	H: 120°, V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	1,000W/sqm
Ave. Power Consumption	300W/sqm
Storage Temperature	-40℃ ~ +80℃
Working Temperature	-20℃ ~ +60℃
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof	Front: IP65, Rear: IP54
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
