Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC 110V - 220V ±15%, 50HZ | Cabinet Material: | Aluminum |
|---|---|---|---|
| Refresh Rate: | >2,000HZ | Cabinet Size: | 1,024mm X 1,024mm |
| Cabinet Weight: | 60kg | Lifespan: | >100,000hours |
| Warranty: | 2 Full Years | Certificate: | CE, LVD, RoHS |
| High Light: | curved led display,curved led panels |
||
Meeting Room 4mm color Curved LED Screens with High Refresh Rate
Decription:
Meeting Room Indoor HD Curved 4mm LED Full Color LED Display with High Refresh Rate. P4 LED display, with 62500dots/sqm resolution makes vivid videos and images visual effection.
1. Mainly be used for indoor and outdoor advertising, and outdoor wall decoration.
2. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens etc.
3. Curve degrees can be adjusted accordingly to different requests of architectural design.
4. Extremely narrow gap between modules contributes to clear image and smooth transition between modules without interval.
5. Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining.
Specification:
|
Pixel Pitch |
4mm |
|
Pixel Density |
62,500dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD2121 |
|
Module Size |
256mm x 128mm |
|
Module Resolution |
64dots x 32dots |
|
Cabinet Size |
768mm x 768mm |
|
Cabinet Resolution |
192dots x 192dots |
|
Drive Duty |
Static Constant Current |
|
Brightness |
>8,000nits |
|
Viewing Distance |
16m - 160m |
|
Viewing Angle |
H: 120°, V120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V - 220V ±15%, 50HZ |
|
Max Power Consumption |
600W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
60kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Widely using for theater, stadium, showroom, stage, monitoring room and etc.

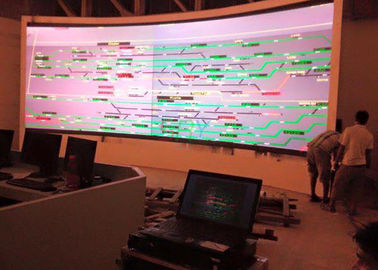

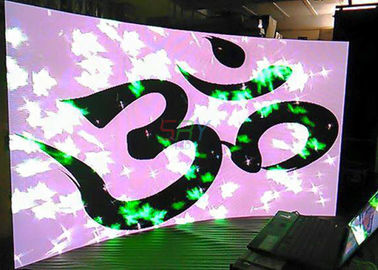

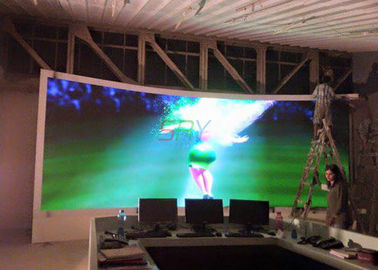

Related Projects:
Competitive Advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. Superb performance / price ratio solution for rental market.
3. 2 full years warranty. 24hours/week on-line service.
4. Plug and play, without tools to install / uninstall one cabinet in 6s.
5. One set cabinet structure is compatiable with various pixel pitches module.
