Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4mm | LED Encapsulation: | SMD2121 |
|---|---|---|---|
| Module Size: | 256mm X 128mm | Drive Duty: | 1/16scan Constant Current |
| Brightness: | >1,500nits | Lifespan: | 100,000hrs |
| Certificate: | CE, LVD, RoHS | Warranty: | 2 Full Years |
| High Light: | curved led display,curved led panels |
||
Wall 4mm electronic HD curved display monitor Commercial Advertising
Decription:
3. Low power consumption
Ave. power cunsumption: 180W/sqm
4. Long lifespan
Surpass100,000 hours
Specificition:
|
Pixel Pitch |
4mm |
|
Pixel Density |
62,500dots/sqm |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD2121 |
|
Module Size |
256mm x 128mm |
|
Module Resolution |
64dots x 32dots |
|
Drive Duty |
1/16scan Constant Current |
|
Brightness |
>1,500nits |
|
Viewing Distance |
4m - 40m |
|
Viewing Angle |
H: 120°, V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
500W/sqm |
|
Ave. Power Consumption |
180W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Applies to showing characters, graphics, images, animations and videos in shopping plaza, wedding ceremony, brithday party, news conference, product launches and etc.

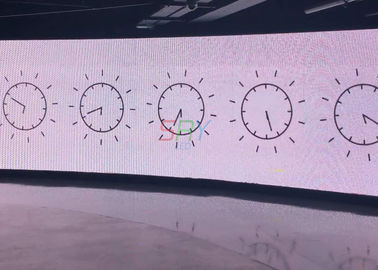

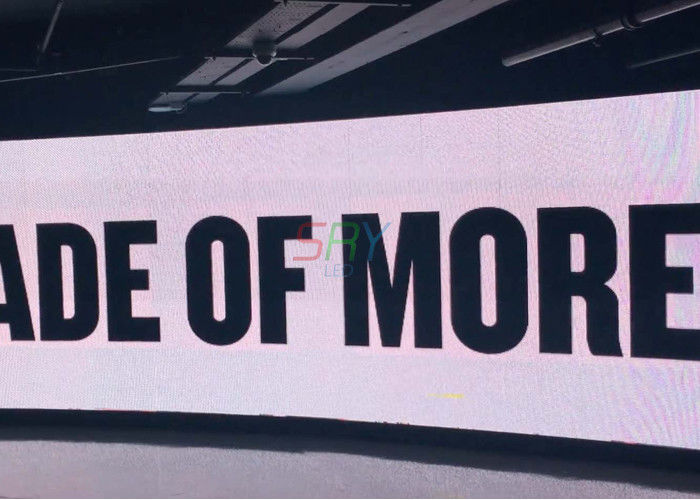

Applications Pictures:
Competitive Advantages:
1 Mainly be used for indoor and outdoor advertising, and outdoor wall decoration.
2. Optional of Convex Shaped, Concave Shaped and Wave Shaped screens etc.
3. Curve degrees can be adjusted accordingly to different requests of architectural design.
4. Extremely narrow gap between modules contributes to clear image and smooth transition between modules without interval.
5. Good performance in color uniformity, large view angle, high brightness, low fault rate and easy for maintaining;
