Product Details:
Payment & Shipping Terms:
|
| Name: | Truck Mounted Led Screen | Pixel Pitch: | 10mm |
|---|---|---|---|
| Module Size: | 320mm X 160mm | Led Chip: | DIP570 |
| Led Type: | 1R1G1B | Brightness: | 7500cd/sqm |
| Leds Brand: | Epistar | Waterproof: | IP65 |
| High Light: | truck mounted led display,mobile led screen trailer |
||
P10 Outside Truck LED Boards Synchronous Programmable LED Electronic Displays
Feature
SRYLED new mobile LED display provides close 16:9 HD format that extends 20’ or more in the air for maximum viewing. Both trailers are self-contained and offer 360 degree rotation for day and night-time events. This advanced design is adaptable to all OEM tiles from premium LED manufacturers. Our LED Display Trailers can be built with our standard electronics package (which includes audio/visual equipment and LED tiles) or it can be customized to integrate your already existing equipment and LED tiles.
1, Eruo US IV emission standards
Used in line with Euro IV emission standard vehicle chassis, more environmentally friendly and lower carbon
2, User friendly mutimedia configuration
P10 full color outdoor LED large screen, monochrome screen bar, roller light box, high-power audio equipment, the effect of media show is outstanding, convenient and stable
3, Independent power supply system
Built-in imported silent diesel generator sets ensure all kinds of parades, road shows, promotional activities be carried out
successfully.
4, Special chassis and powertrain
Special chassis and power systems which are jointly developed with well-known car brand ensure safe driving
5, Customized Led vehicle solution
Personlized remoulding and painting solution for promotional projects to achieve better promotional effects
Specification
LED Screen dimension: 2880mm x 2240mm
Dot pitch: 10 mm
External dimension: 4903mm x 2200mm x 4960mm
Total Weight: 4,290 KG
Multimedia Control System: industrial PC + Video processor + 15-inch LCD monitor + speaker
Specification
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
1R1G1B 3 in 1 |
|
LED Package |
DIP570 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Brightness |
7500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications
1) Trucks,dump trucks and tipper trucks
Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.
2) Special-purpose vehicles
Trailer; various semi trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi container trailers;
goose low bed trailers; fuel tank trailers.
Our Service and Mission
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.

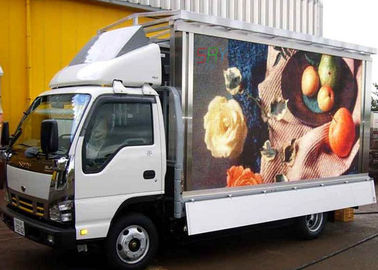

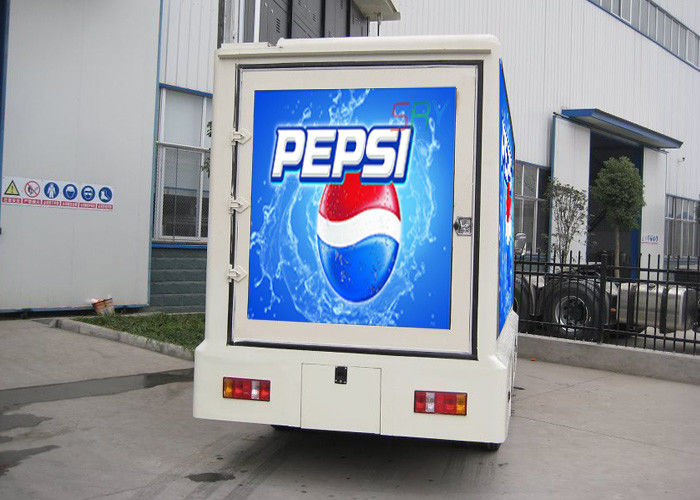

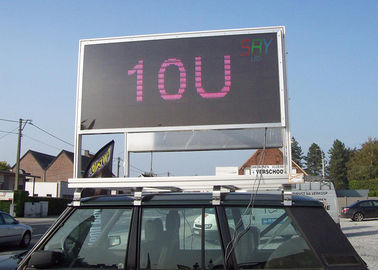

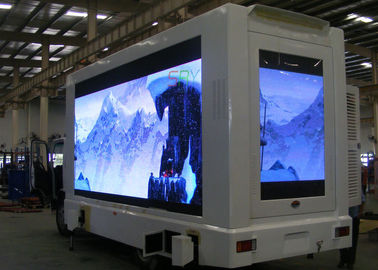

Product Images
