Product Details:
Payment & Shipping Terms:
|
| Name: | Truck Mounted Led Screen | Pixel Pitch: | 8mm |
|---|---|---|---|
| Module Size: | 256mm X 128mm | Led Chip: | SMD3535 |
| Led Type: | 1R1G1B | Leds Brand: | Nationstar |
| Waterproof: | IP65 | Application: | Truck, Trailer |
| High Light: | truck mounted led display,led truck advertising |
||
1R1G1B Two Edge Mobile LED Screen Truck Rental RGB LED Display 1500R / Min
Feature
SRYLED new mobile LED display provides close 16:9 HD format that extends 20’ or more in the air for maximum viewing. Both trailers are self-contained and offer 360 degree rotation for day and night-time events. This advanced design is adaptable to all OEM tiles from premium LED manufacturers. Our LED Display Trailers can be built with our standard electronics package (which includes audio/visual equipment and LED tiles) or it can be customized to integrate your already existing equipment and LED tiles.
1, Power Supply System
External power for LED screen and rotating bodies.
Vehicle power for hydraulic system.
2, Hydraulic Power System
Imported independent hydraulic power unit with vehicle power supply or PTO power systems as power source.
3, Hydraulic Support Unit
a, Four hydraulic legs,the ground support vehicle stability.
b, Expand legs, the transverse distance up to 4000mm, vertical distance up to 5000mm, the structure is very stable.
c, Wind resistance of the design up to 12 Typhoon in theory.
4, Totating Mechanism
A totating speed of 0.5r/min
Description
1) Chassis dimension length/width/height (mm): 6970×2240×2450 mm
2) Chassis model: CDW5040XXY
3) Wheelbase (mm): 3360mm
4) Tire specification: 8.25-16 nylon tire (6 units)
5) Fuel type: Diesel
6) Engine: YC4D130-41 (Turbo Diesel)
7) Exhaust/ Power (ml/kw): 4200ml/96kw
8) Engine Manufacturer: Guangxi Yuchai Engine group
9) Hydraulic pump which can lift the screen up for 1.8m
10) Engine: OM15CY (OUMA)
Rated power: 15/15KVA
HZ:50 HZ
Rated voltage:230V
Rated current:65.2A
PF:1.0
Rated rotate speed:1500r/min
Phase:Single
Weight: 480kgs
11) Screen Pixel: 8mm
Screen size: 3.072 x 2.048 m
12) Four hydraulic legs
13) At the top of the compartment, equipped one cooling exhaust fan,220V
14) Waterproof audio equipment (four units)
Specification
|
Pixel Pitch |
8mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
1R1G1B 3 in 1 |
|
LED Package |
SMD3535 |
|
Module Size |
256mm x 128mm |
|
Module Resolution |
32dots x 16dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Brightness |
6000cd/sqm |
|
Viewing Distance |
8m-80m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
850W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications
1) Trucks,dump trucks and tipper trucks
Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.
2) Special-purpose vehicles
Trailer; various semi trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi container trailers;
goose low bed trailers; fuel tank trailers.

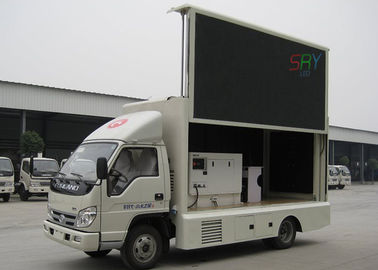

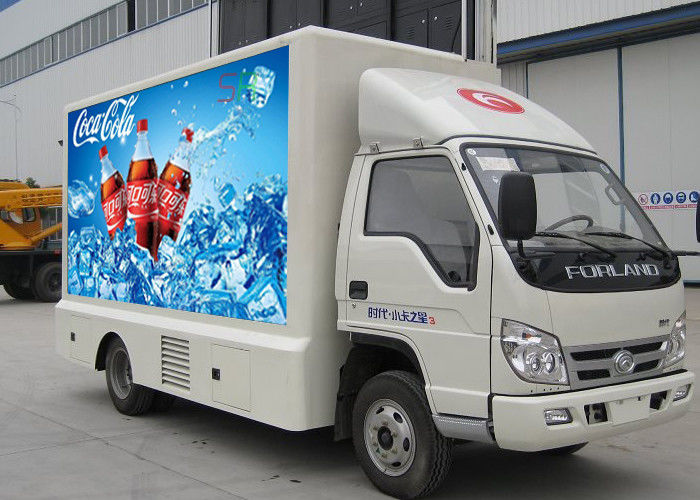

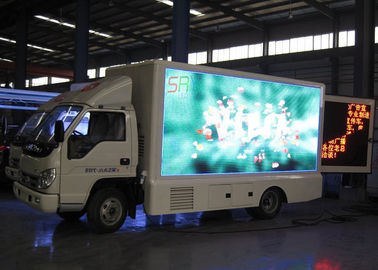

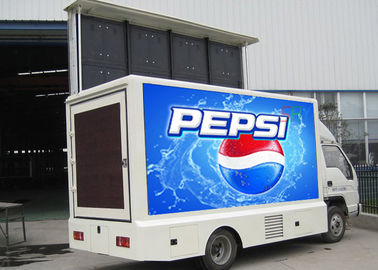

Product Images
