Product Details:
Payment & Shipping Terms:
|
| Name: | Truck Mounted Led Screen | Pixel Pitch: | 10mm |
|---|---|---|---|
| Module Size: | 160mm X 160mm | Led Chip: | DIP346 |
| Brightness: | 7500cd/sqm | Drive Method: | 1/4 Scan |
| Waterproof: | IP65 | IC: | MBI Or JXI |
| High Light: | led truck advertising,mobile led screen trailer |
||
P10 Truck Mounted LED Display Full Color Waterproof Mobile LED Truck
Description
SRYLED new mobile LED display provides close 16:9 HD format that extends 20’ or more in the air for maximum viewing. Both trailers are self-contained and offer 360 degree rotation for day and night-time events. This advanced design is adaptable to all OEM tiles from premium LED manufacturers. Our LED Display Trailers can be built with our standard electronics package (which includes audio/visual equipment and LED tiles) or it can be customized to integrate your already existing equipment and LED tiles.
1, Eruo US IV emission standards
Used in line with Euro IV emission standard vehicle chassis, more environmentally friendly and lower carbon
2, User friendly mutimedia configuration
P10 full color outdoor LED large screen, monochrome screen bar, roller light box, high-power audio equipment, the effect of media show is outstanding, convenient and stable
3, Independent power supply system
Built-in imported silent diesel generator sets ensure all kinds of parades, road shows, promotional activities be carried out
successfully.
4, Special chassis and powertrain
Special chassis and power systems which are jointly developed with well-known car brand ensure safe driving
5, Customized Led vehicle solution
Personlized remoulding and painting solution for promotional projects to achieve better promotional effects
Feature
L X W X H: 3500 X 2050 X 3905MM ( max height)
L X W X H: 3500X2050X2720MM (Lowest Height)
Operating height:: 3905mm
Pan rotation: 360 °
Draw bar length: A frame type 1200mm
Screens can stop in the middle height, up and down via remote control
For corner jack stands: 15 inch, 2000LBS
Draw bar jack stand (with 6inch jockey wheel): 1500LBS
Coupler: 5000LBS; 50mm ball
Wheel type: 14 inch
Disc brake system for the wheel(no asbestos)
Hydraulic function for video panel lift
Manual Hydraulic Backup
Extension legs: 400mm extendable
3mm steal check plate
Control systems: Operating system: Remote control with Wifi and PC remote control
Specification
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
1R1G1B 3 |
|
LED Package |
DIP346 |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
16dots x 16dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Brightness |
7500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications
1) Trucks,dump trucks and tipper trucks
Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.
2) Special-purpose vehicles
Trailer; various semi trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi container trailers;
goose low bed trailers; fuel tank trailers.

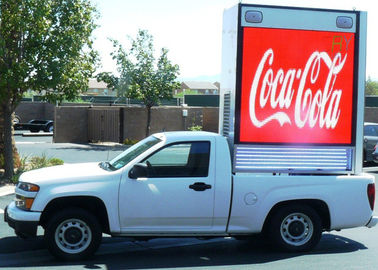

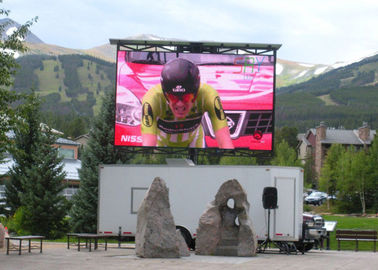

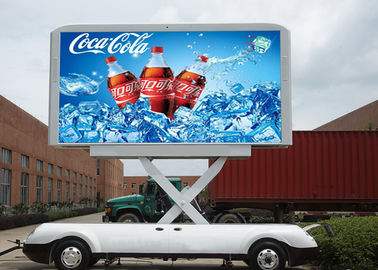

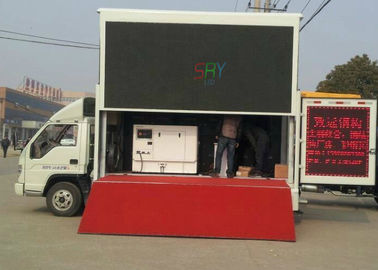

Product Images
