Product Details:
Payment & Shipping Terms:
|
| Name: | P6.67 Led Display | Pixel Pitch: | 6.67mm |
|---|---|---|---|
| Module Size: | 320mm X 160mm | Cabinet Size: | 640mm X 640mm |
| Cabinet Weight: | 13KG | Led Chip: | SMD3535 |
| Brightness: | 6500cd/sqm | Certificate: | CE, RoHS |
| High Light: | advertising LED display,LED advertising billboards |
||
Outside RGB P6.67 640x640mm Advertising Led Display With Die Casting Cabinet
Description:
1. SMD 3-in-1 LEDs, nice videos, wide viewing angle
2. 640x640mm Die-casting aluminum LED cabinets, nice appearance and good quality
3. Super thin, light weight, with handles and fast locks, easy to install
4. Seamless and flatness ensure high quality video, image effect
5. Waterproof IP65, oxidation resistance, anti-dust
6. Flightcase package, easy to take the LED display to different places according your need.
7. Suitable for stage rental, event show, concert, mobile advertising, etc
8. Available product: P6.67, P8, P10
Specification:
|
Pixel Pitch |
6.67 mm |
|
Pixel Density |
22477dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
48dots x 24dots |
|
Drive Mode |
1/6 Scan, Constant Current |
|
Brightness |
>6500cd/sqm |
| Led Chip | Nationstar |
| Power Supply | G-Energy, Chuanglian, Meanwell |
|
Viewing Distance |
6m-70m |
|
Cabinet Size |
640mm x 640mm |
|
Cabinet Material |
Die-casting Aluminum |
|
Cabinet Weight |
13KG |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1200W/sqm |
|
Ave. Power Consumption |
500W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
PC Display Resolution |
1280x1024 |
|
Operating System |
Win 98, Win2000, XP, Win7 ,Win8.etc |
|
Video Signal Mode |
RF,S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
| Business Organizations | Shopping malls, concert festival activity, hotels |
| Financial Organizations | Banks, post offices, hospital, schools |
| Public Places | Airports, exhibition halls, stadiums, meeting rooms |
| Entertainments | Clubs, bars, concert stages |
Competitive Advantage:
1) We have our own developing and designing team, which ensure our own technological and
innovative product for customers.
2) Your inquiry related to our products or price will be replied in 12hrs.
3) Best cost performance and perfect service before and after sales.
4) If necessary, our engineers can be sent to your country to assist you to solve all problem.
5) Customers can come to our company for free traning.

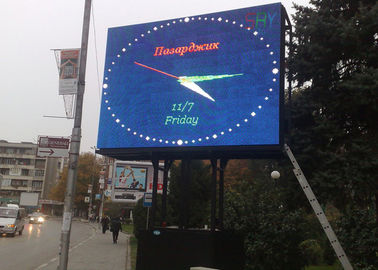

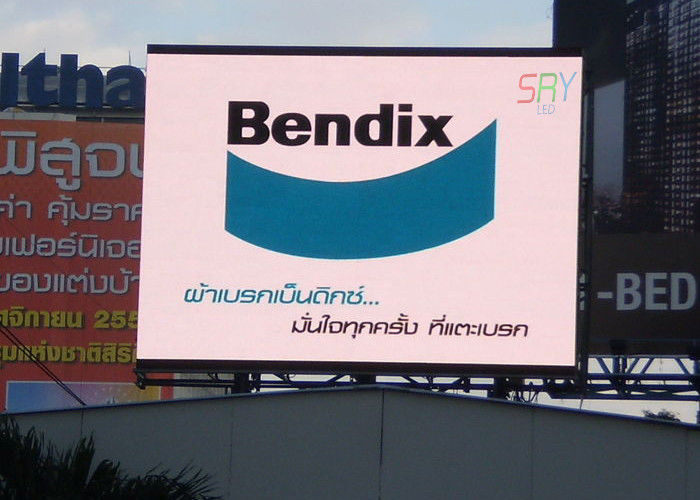

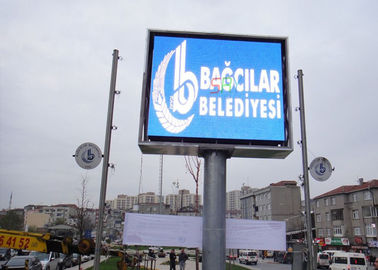

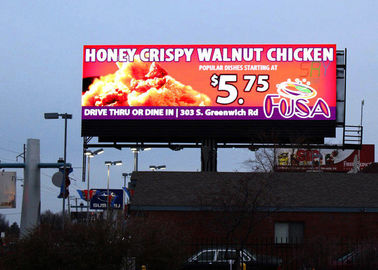

Product Image
