Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6.67mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Led Chip: | SMD3535 | Brightness: | 6500cd/sqm |
| Led Brand: | Nationstar | Drive IC: | MBI5024 |
| Power Supply: | G-energy | Certificate: | CE, RoHS |
| High Light: | LED advertising billboards,led advertisement board |
||
Ultra Thin P6.67 Hanging LED Advertising Screens SMD 3G Wireless Control
Description:
1. Unique cabinet design with light weight,can be used for different installation.
2. IP65 waterproof, power&signal connectors,can adapt to different outdoor environment.
3. SMD3535 for outdoor usage high brightness with big viewing angle for different outdoor rental status.
4. Cabinet structure allows air flow,natural cooling,fanless design and noiseless.
5. High brightness , good display visual effect even sunshine on screen directly.
6. Oxidation resistance, anti-dust.
7. Available product: P6.67, P8, P10.
Specification:
|
Pixel Pitch |
6.67 mm |
|
Pixel Density |
22477dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
48dots x 24dots |
|
Drive Mode |
1/6 Scan, Constant Current |
|
Brightness |
>6500cd/sqm |
| Led Chip | Nationstar |
| Power Supply | G-Energy, Chuanglian, Meanwell |
|
Viewing Distance |
6m-70m |
|
Cabinet Size |
640mm x 640mm |
|
Cabinet Material |
Die-casting Aluminum |
|
Cabinet Weight |
13KG |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1200W/sqm |
|
Ave. Power Consumption |
500W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
PC Display Resolution |
1280x1024 |
|
Operating System |
Win 98, Win2000, XP, Win7 ,Win8.etc |
|
Video Signal Mode |
RF,S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
| Business Organizations | Shopping malls, concert festival activity, hotels |
| Financial Organizations | Banks, post offices, hospital, schools |
| Public Places | Airports, exhibition halls, stadiums, meeting rooms |
| Entertainments | Clubs, bars, concert stages |
Competitive Advantage:
1) We have our own developing and designing team, which ensure our own technological and
innovative product for customers.
2) Your inquiry related to our products or price will be replied in 12hrs.
3) Best cost performance and perfect service before and after sales.
4) If necessary, our engineers can be sent to your country to assist you to solve all problem.
5) Customers can come to our company for free traning.

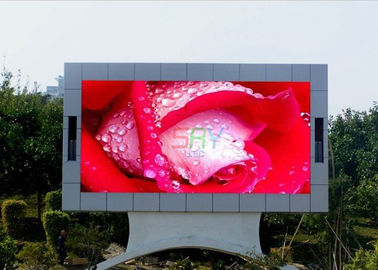

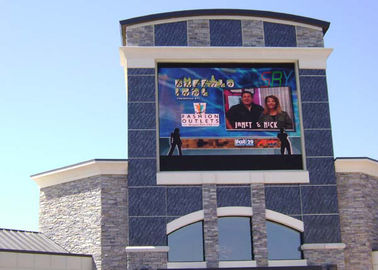

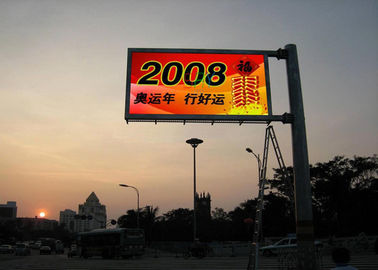

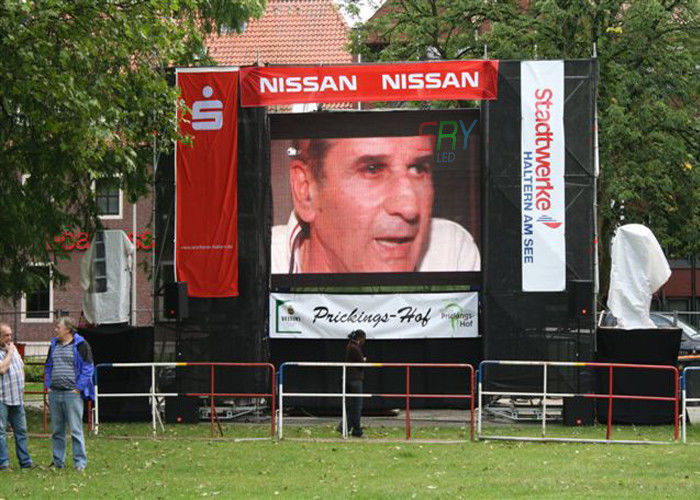

Product Image
