Product Details:
Payment & Shipping Terms:
|
| Name: | P10 Led Display Module | Pixel Pitch: | 10mm |
|---|---|---|---|
| Module Size: | 160mm X 160mm | Led Chip: | DIP346 |
| Led Type: | 1R1G1B | Drive Method: | 1/4 Scan |
| Waterproof: | IP65 | Leds Brand: | Epistar |
| Drive IC: | JXI5020 | Cabinet Size: | 960mm X 960mm |
| High Light: | Indoor LED Display Module,LED screen Module |
||
1/4 Scan Outdoor Full Color P10 RGB LED Display Module 16 x 16 Dots
Description
1, P10 1R1G1B led display, with 10000dots/sqm, which guarantee vivid and clear image effection.
2, Cabinets with Protection grade IP65 front and IP54 rear, suitable for all outdoor working environment.
3, Fast locks at the four sides of the cabinet, easy assemble and be piled up and be hoisted.
4, Backside maintenance. Exterior exposed module screws, easy dismantling.
5, Waterproof connectors, safe and steady.
Features:
1, DIP 3 in 1 and 1R1G1B are optional
2, High brightness with 6500-8000cd/m2 adjust
3, Large viewing angle with 140°/120°
4, High quality control without stop 48 hours aging time
5, High quality material,Epistar LED Chip and JXI5020 IC
6, Fast delivery time,produce time only 3-5working days
7, Can use for fixed advertising and outdoor rental
Competitive advantages
1, High brightness
2, Big viewing angle
3, Good white balance
4, Long aging time
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
DIP346 |
| Led Chip | Epistar |
| Drive IC | JXI5020 |
| Weight | 0.5KG/pcs |
|
Module Size |
160mm x 160mm |
|
Module Resolution |
16dots x 16dots |
|
Drive Mode |
1/4 Scan, Constant Current |
|
Brightness |
7500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 etc |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications:
|
Business Organizations |
Supermarket, shopping malls, star-rated hotels, travel agencies |
|
Financial Organizations |
Banks, insurance companies, hospital, schools |
|
Public Places |
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings |
|
Entertainments |
Movie theaters, stages |
Our Service and Mission
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.

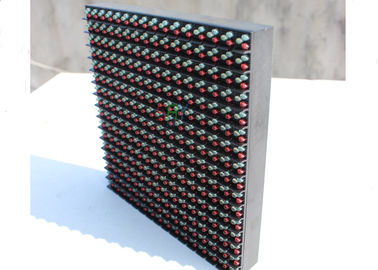

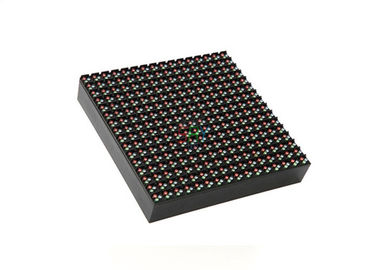

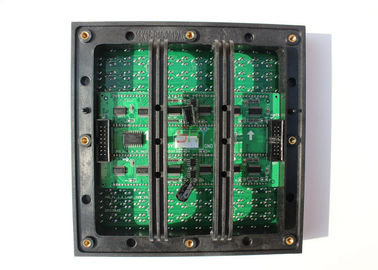

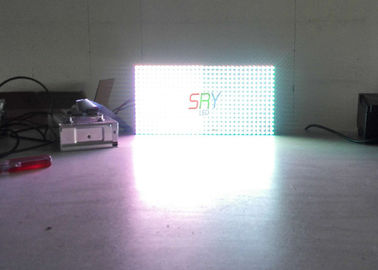

Product Images
