Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4.81mm | Module Size: | 250mm X 250mm |
|---|---|---|---|
| Pixel: | 52 X 52 Dot | Led Chip: | SMD2525 |
| Cabinet Size: | 500mm X 500mm / 500mm X 1000mm | Cabinet Material: | Die Casting Aluminum |
| Weight: | 10KG/pcs | Drive Method: | 1/13 Scan |
| High Light: | rental LED screen,Rent LED Display |
||
1/13 Scan Hanging P4.81 SMD Video Led Display With Novastar Control System
Available Led Pixel: P3.91, P4.81, P5.21,P6.25, P7.81
Description
1.Super Light and Thin
10KG/panel with a depth of 70mm which is half of the depth of traditional LED screen,saving space and transportation cost.
2.High Refresh Rate
Refresh Rate≥3000, offering impressive visual effect.
3.Noiseless
Free of fans and air conditions, excluding noise and reducing power consumption.
4.Fine and Smooth Picture
Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.
5.Seamless Splicing
High conformity of picture without gap and information missing, realizing a seamless splicing display.
6.Fast Installation and Dismantlement.
Features
1, Outdoor high resolution and high brightness.
2, Ingress protection being IP65, weather proof and dust proof.
3, High brightness uniformity and color uniformity(≥95%).
4, Super thin and light with aluminum cabinet design.
5, Good anti-UV and anti-oxidation performance.
6, Large viewing distance, 140° in horizontal, 140° in vertical.
7, Excellent flatness and no splicing gap between modules
8, Quick installation and removal with facile connection lock
Competitive Advantages
1, First-class led chip and IC
2, 48 hours aging for modules and led screens
3, 24/7 after-sale service
4, Free technology and operation training
5, Engineer guide install and operate online
Specification
|
Pixel Pitch |
4.81mm |
|
Pixel Density |
43222dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2727 |
|
Module Size |
250mm x 250mm |
|
Module Resolution |
52dots x 52dots |
|
Drive Mode |
1/13 Scan |
| Cabinet Material | Die casting Aluminum |
| Led Color | Black |
|
Standard Cabinet Size |
500mm x 500mm |
|
Cabinet Weight |
10KG |
|
Brightness |
≥6000 cd/sqm, adjustable by software |
|
Viewing Distance |
4m-40m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
3840HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP65 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
LINSN, NOVA, Colorlight |
|
PC Display Resolution |
1280x1024 |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Applications

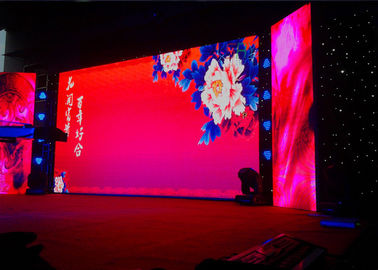

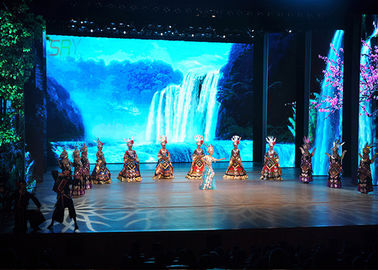

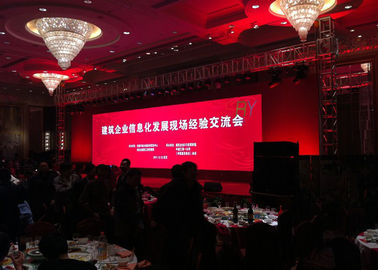

Stage background, advertising activity, press conference, news conference etc.
After-Sales Service
1, Guarantee
(a) we guarantee that all of our LED displays and necessary components are well tested before shipment, and we will replace or repair the goods if any problem that belongs to us happens during 2 years.
(b) we provide free life-time maintenance and only charge the raw material cost.
2, Technical Support
(a) we provide free technical support, which includes operation training and maintenance training in the factory
(b) we can send our engineers to your country after negotiation
3, Maintenance and Consultation
(a) we provide full maintenance for a lifetime and only charge the raw material cost
(b) we also provide lifetime consultation through Email, SMS, Phone call, etc.
4, Documents and Certificates
(a) we provide all necessary user's manual, software, test report, CAD drawing, etc.
(b) we can also provide all kinds of certificates, such as CE, RoHSetc.
Product Images
