Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4mm | Module Size: | 256mm X 128mm |
|---|---|---|---|
| Led Chip: | SMD2121 | Drive Method: | 1/16 Scan |
| Cabinet Size: | 512mm X 512mm | Cabinet Material: | Die Casting Aluminum |
| Cabinet Weight: | 7KG/pcs | Cabinet Color: | Orange, Gold, Blue, Black Etc |
| High Light: | rental LED screen,hire LED screen |
||
HD P4mm SMD2121 Stage Background Led Screen 62500 Dots / Sqm
Description
1. Seamless Connection
New design, suitable for indoor live show, brightness adjustable. neither flick nor color blocks. Die casting aluminum cabinet size 512mm*512mm, seamless connection, 0.1mm gapline between 2 cabinets.
2. Quick and Easy Installation in 10 Seconds
Fast lock for quick and easy installation. Maximum support 50pcs hanging in a collum. Fast locks design, cabinets can be easily assemblied in 10 seconds.
3. Support All Media Format and Display Mode
Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show.
4. Cost Saving for Installation and Maintenance
Dual-maintenance, fanless, noiseless, low power comsumption.Vertical / Horizontal viewing angle 140 degree.
5. Ideal for super market, Shopping mall, hospital, bank, enterprises, government offices, exhibition hall, hotel, sports stadium center, customs, staging area,car exhibition, airport, transportation, parks, TV
Features
1, Equipped with professional video processor, which supports signal formats like RGB, DVI, Composite Video, HDMI, SDI , broadcast etc.
2, With video processor, the displaying effect is better, clear picture and no blink.
3, Supports brightness adjustment.
4, Protection grade is IP43, for indoor rental use.
5, Flight case would be provided in order to store and transport conveniently.
6, It is used at open stage for concerts etc.
Competitive Advantages
1, First-class led chip and IC
2, 48 hours aging for modules and led screens
3, 24/7 after-sale service
Specification
|
Pixel Pitch |
4mm |
|
Pixel Density |
62500dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
| LED Color | Black |
|
Module Size |
256mm x 128mm |
|
Module Resolution |
64dots x 32dots |
|
Drive Duty |
1/16 Scan |
|
Standard Cabinet Size |
512mm x 512mm |
|
Cabinet Weight |
7KG |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
|
Brightness |
≥1200 cd/sqm |
|
Viewing Distance |
4m-40m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |

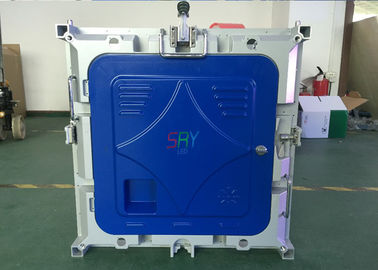

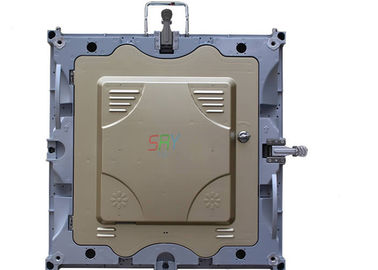

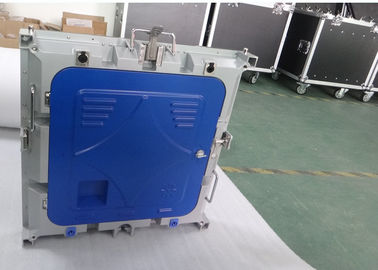

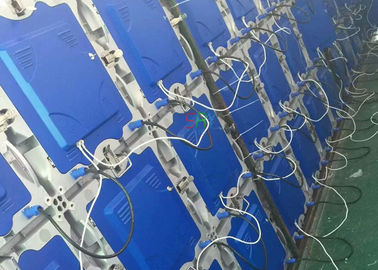

Product Images
Could you just please let us know your detailed project information?
1. The pixel pitch you require or the viewing distance(the distance between the LED displays and the audience)?
2. for permanent installation or rental application?
3. the detailed dimensions of the LED screen, width and height?
SRYLED would be very glad to provide you the most professional solution with good price upon receipt of your confirmation
