| Pixel Pitch: | 4mm | Module Size: | 256mm X 128mm |
|---|---|---|---|
| Led Type: | SMD2121 | Drive Method: | 1/16 Scan |
| Cabinet Size: | 512mm X 512mm | Cabinet Weight: | 8KG/pcs |
| Led Chip: | Nationstar | Certification: | CE, RoHS |
| High Light: | rental LED screen,hire LED screen |
||
Nationstar P4 Rental LED Display SMD 1R1G1B Indoor Full Color LED Video Wall
Dear All,
AS you see as follow is the details about p4 die casting aluminium cabinet for rental. But we also can produce p4 indoor regular iron, aluminum and brushed aluminum cabinet. So when you send inquiry pls describle it clearly.Then i can make best solution in a quikly time for you.
Thanks
Description
1. First-class LED chip.
Supplied by Nationstar & other high strictly selected LED chip to ensure the long lifetime and high brightness.
2. High Contrast ratio: above 2000:1
Very high level to ensure a vivid image of our LED display screen system.
3. Clear vivid image quality.
More than 120 degree in horizontal and vertical to ensure you attract more audience to get short ROI of your LED display screen's investment.
4. Long-term Brightness.
Use high quality led chip and lamp to ensure led display can last 8 years with low Lumens depreciation.
5.High definition.
Led display with high resolution 62500 dots/sqm to keep good video effect.
Features
1) Can be hang or stand in ground.
2) Size and Weight: 512mm*512mm, 8KG.
3) No tools needed, 10 seconds installation or dismantle.
4) 4 fast locks with locating pins, very stable to plug the adjacent cabinets.
5) IP43 indoor usage, high brightness 2000 nit, good heat dissipation.
Competitive Advantages
1, First-class led chip and IC
2, 48 hours aging for modules and led screens
3, 24/7 after-sale service
Specification
|
Pixel Pitch |
4mm |
|
Pixel Density |
62500dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD2121 |
| LED Color | Black |
|
Module Size |
256mm x 128mm |
|
Module Resolution |
64dots x 32dots |
|
Drive Duty |
1/16 Scan |
|
Standard Cabinet Size |
512mm x 512mm |
|
Cabinet Weight |
8KG |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
|
Brightness |
≥1200 cd/sqm |
|
Viewing Distance |
4m-40m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |

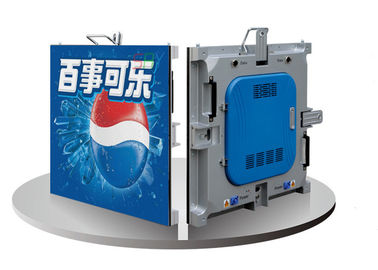

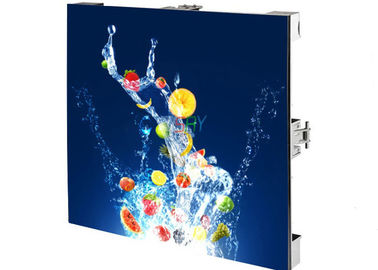

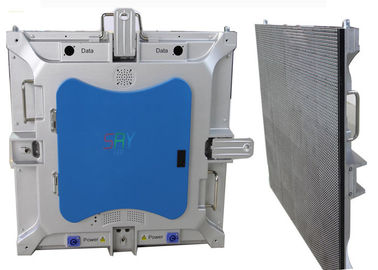

Product Images
Could you just please let us know your detailed project information?
1. The pixel pitch you require or the viewing distance(the distance between the LED displays and the audience)?
2. for permanent installation or rental application?
3. the detailed dimensions of the LED screen, width and height?
SRYLED would be very glad to provide you the most professional solution with good price upon receipt of your confirmation
