Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Module Size: | 320mm X 160mm |
|---|---|---|---|
| Led Chip: | Epistar | Drive Method: | 1/16 Scan |
| Resolution: | 40000 Dots/sqm | Material: | Die Casting Aluminum |
| Warranty: | 2 Years | ||
| High Light: | rental LED screen,hire LED screen |
||
40000 Dots / Sqm Vivid Image Full Color Indoor Led Display Epistar Smd Portable
Description
1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce transportation fee and save costs.
2.Thin cabinet:the thickness is only 9 CM, the space of the screen is small , and the entire screen will be more beautiful.
3. Flat screen: smooth surface error is under 0.1cm, it can remove the mosaic phenomenon effectively.
The effect of the display will be more clear and exquisite.
4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.
5. Low release heat: low noise, low consumption, excellent thermal design and excellent thermal dispersion.
6. Full compatible: new structure design which can demand the indoor displays’ require.
Advantages
1. Vivid and brilliant color, sharp and smooth images.
2. Plug & Play, No tools, 10 Seconds for one panel installation / dismantle.
3. One set cabinet structure is compatible with various pixel pitches, easily have another new screen by
changing led modules.
4. Support different shapes installation: Flat and curved ,create infinite stage styles.
5. Superb performance/price ratio solution for rental market.
6. 24/7 professional after sales service, and on-site service is available.
Specification
|
Pixel Pitch |
5mm |
|
Pixel Density |
40000dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3528 |
|
Module Size |
320mm x 160mm/ 160mm x 160mm |
|
Module Resolution |
64dots x 32dots/ 32dots x 32dots |
|
Drive Mode |
1/16 Scan |
|
Standard Cabinet Size |
640mm x 640mm |
|
Cabinet Weight |
12KG |
|
Brightness |
≥1500 cd/sqm |
|
Viewing Distance |
5m-50m |
|
Viewing Angle |
H: 140°; V:120° |
|
Refresh Rate |
2000HZ, adjustable by software |
|
Frame Rate |
120frame/s |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-30℃~+70℃ |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof Level |
IP43 |
|
Operating Humidity |
10%~90% RH |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Control PC |
With DVI Graphic card |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8 |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |

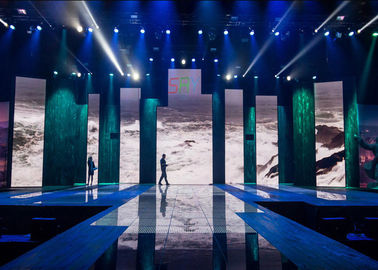

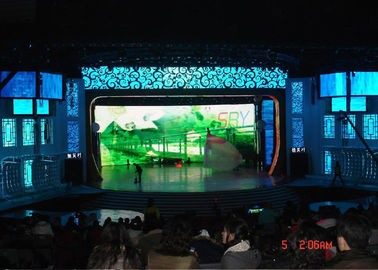

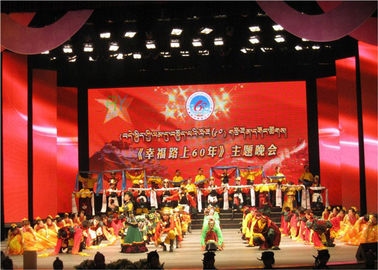

Applications
Stage Background;
Show & Exhibitions;
Concert And Other Entertainment Events;
Company events; Club & Others.
Product Images
