| Pixel Pitch: | 6mm | Resolution: | 27777dots/sqm |
|---|---|---|---|
| Cabinet Size: | 576mm X 576mm | Brightness: | 6500cd/sqm |
| Waterproof: | IP65 | Led Type: | SMD3535 |
| High Light: | rental LED screen,hire LED screen |
||

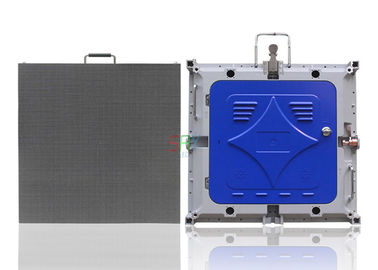

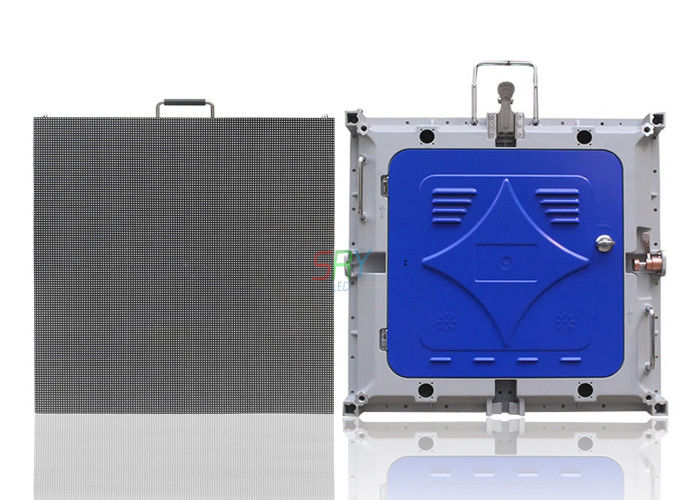

Waterproof Rental LED Display 576x576mm P6 SMD3535 Led Video Display Panels
Outdoor Rental Led Display Available Pixel Pitch, P4.81, P5, P6, P6.67, P8, P10
Feature
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Competitive Advantage
1. First-class LED chip: Epistar from Taiwan.
2. With pure copper wire connection in LED.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Long-term Brightness capacity throughout product lifetime.
8. Two years warranty.
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine,
Solder Paste Printing Machine,Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium speed Automatic SMT Machine,
Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI)
Equipement.
Applications

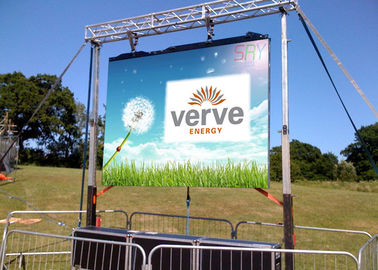

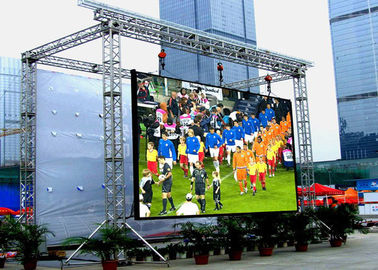

Commercial advertising, night club, entertainment events, business establishments, stock exchange centers, schools, telecommunications, stadiums, shopping malls, railways, airports, stages, activities etc.
Specification
|
Pixel Pitch |
6mm |
|
Pixel Density |
27777dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Package |
SMD3535 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Mode |
1/8 Scan, Constant Current |
|
Brightness |
>6500cd/sqm |
| Led Chip | Epistar |
|
Viewing Distance |
6m-60m |
|
Viewing Angle |
H: 140°; V:140° |
|
Refresh Rate |
2000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
1200W/sqm |
|
Ave. Power Consumption |
500W/sqm |
|
Storage Temperature |
-40℃~+85℃ |
|
Working Temperature |
-20℃~+65℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, 3G, WIFI, USB |
|
Control PC |
With DVI Graphic card |
|
PC Display Resolution |
1280x1024 |
|
Operating System |
Win 98, Win2000, XP, Win7 ,Win8.etc |
|
Video Signal Mode |
RF,S-Video, RGB, RGBHV, YUV, YC etc |
|
Certificate |
CE, RoHS |
Product Images
