Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | Module Size: | 192mm X 192mm |
|---|---|---|---|
| Cabinet Size: | 1536mm X 768mm | Weight: | 55KG |
| Brightness: | 6500cd/sqm | Waterproof: | IP65 |
| Led Type: | SMD3535 | Certificates: | CE, RoHS, LVD |
| High Light: | LED advertising billboards,led advertisement board |
||
P5 P6 P8 Roadside Street Lamp Pole Commercial Led Display Creative Led Open Sign Solar Power
Features
Description
|
Product Name
|
WIFI / 3G / 4G P5 P6 P8 Roadside Street Lamp Pole Creative Led Open Sign Solar Power
|
||
|
Frame Material
|
Stainless steel, aluminum, galvanized sheet optional! Conventional aluminum profile.
|
||
|
Panel Material
|
Glass, acrylic, PC board optional! Conventional tempered glass, thickness according to product size changes.
|
||
|
Light Source
|
High Brightness LED Lamp.
|
||
|
Lightbox Dimensions
|
You can customize the size as needed
|
||
|
Color
|
Surface color changing, can be customized according to requirements
|
||
|
The Packaging
|
Bubble Cotton & cardboard, Wooden boxes for export
|
||
Competitive Advantage
1. 7 years Led industrial experience
2. 24/7 hours online remote support
3. 2 year warranty years
4. Free factory training or engineer support on site
Applications
Road side, Street light pole, Bus station
Specification
| SRY Postar Display | SRY-IF-P4 | SRY-OF-P5 | SRY-OF-P6 | SRY-OF-P8 |
| Pixel Pitch | 4mm | 5mm | 6mm | 8mm |
| LED Configuration | 1R1G1B SMD2121 | 1R1G1BSMD2727 | 1R1G1BSMD3535 | 1R1G1BSMD3535 |
| Pixel Density | 62500dot/m2 | 40000dot/m2 | 27778dot/m2 | 15625dot/m2 |
| Module Size | 256x128mm | 160x160mm | 192x192mm | 256x128mm |
| Module Resolution | 64x32dot | 32x32dot | 32x32dot | 32x16dot |
| Display Size | 768x1536mm | 800x1600mm | 768x1536mm | 768x1536mm |
| Cabinet Size | 768x1740x80mm | 800x1850x80mm | 768x1740X80mm | 768x1740X80mm |
| Cabinet Resolution | 192x384dot | 160x320dot | 128x256dot | 96x192dot |
| Cabinet Weight | 55kg | 60kg | 55kg | 55kg |
| IP Rating ( front/back) | IP65 | IP65 | IP65 | IP65 |
| Scanning Mode | 16S | 8S | 8S | 8S |
| Brightness Intensity | ≥2000CD/m2 | ≥6500CD/m2 | ≥6500CD/m² | ≥6000CD/m² |
| Viewing Angle (H/V) | 120° | 120° | 120° | 120° |
| View Distance | >4m | >5m | >6m | >8m |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Display Scale | 16.7M | 16.7M | 16.7M | 16.7M |
| Max.Power Consumption | 720 W/m² | 800 W/m² | 900 W/m² | 1000 W/m² |
| Ave.Power Consumption | 210 W/m² | 280 W/m² | 300 W/m² | 400 W/m² |
| Refresh Frequency | ≥960HZ | ≥960HZ | ≥960HZ | ≥960HZ |
| Environmental | OUTDOOR | OUTDOOR | OUTDOOR | OUTDOOR |
| Brightness Adjustment | 0 - 100 levels adjustable | |||
| Control Mode | Asynchronous system | |||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | |||
| Operation Power | AC100 / AC240 50 / 60HZ | |||
| Operating Temperature | - 20℃~+50℃ | |||
| Operating Humidity | 10~90% RH | |||
| Operating Life | 100,000hours | |||
Our Service
1) Reply your inquiry in 12 hours.
2) Experienced staffs answer all your query in fluent English,Spanish,Russian,etc
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our led display distributor.
6) Warmly welcome your visit in our company if available.

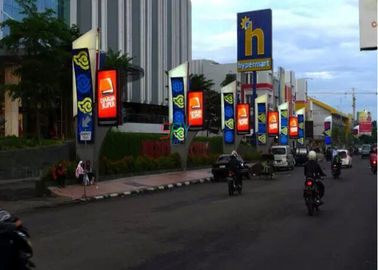

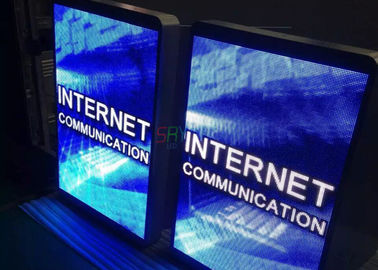

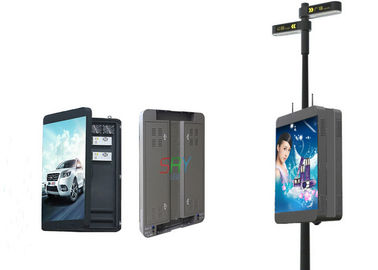

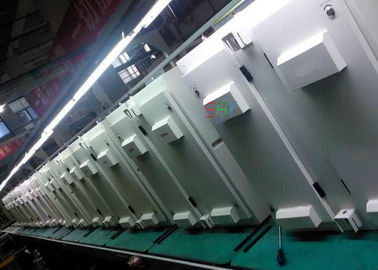

Product Images
