Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | LED Type: | SMD3535 |
|---|---|---|---|
| Module Size: | 192mm X 192mm | Resolution: | 27777dots/sqm |
| Waterproof: | IP65 | Brightness: | 6500cd/sqm |
| High Light: | Indoor LED Display Module,full color LED Display Module |
||
P6 SMD3535 Led Panel Module 32 * 32 Video RGB Led Panel HD Waterproof
Decription:
1. We use the first level LED chip from Taiwan Epistar.
2. SMD 3535 lamp with high brightness and waterproof IP65.
3. With pure copper wire connection in LED.
4. RGB deep grey scale processing, rich color and HD image effect.
5. Support dot by dot correction, to make sure the consistency of color and brightness for one screen.
2. Screen working humidity: 10% ~ 95%.
3. Screen working temperature: -20ºc ~ +60ºc.
4. Screen viewing angle: H: 120°; V: 120°
Specificition:
|
Pixel Pitch |
6mm |
|
Pixel Density |
27,777dots/sqm |
|
Color Configuration |
1R1G1B |
|
LED Encapsulation |
SMD3535 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Drive Duty |
1/8 Constant Current |
|
Brightness |
>6500nits |
|
Viewing Distance |
6m - 60m |
|
Viewing Angle |
H: 120°; V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V-20A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
850W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃~+80℃ |
|
Working Temperature |
-20℃~+60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, Win7, Win8.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Widely applied to traffic information distribution of station, square and airport, conference, shoppingmall, brand presentantion,TVstation, stage show, concert and so on.

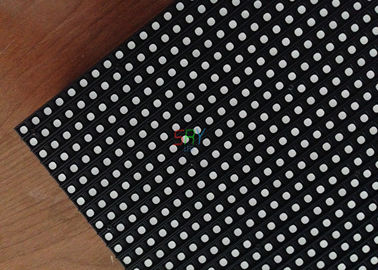

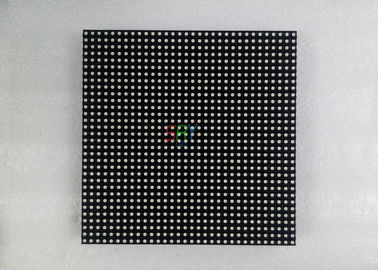

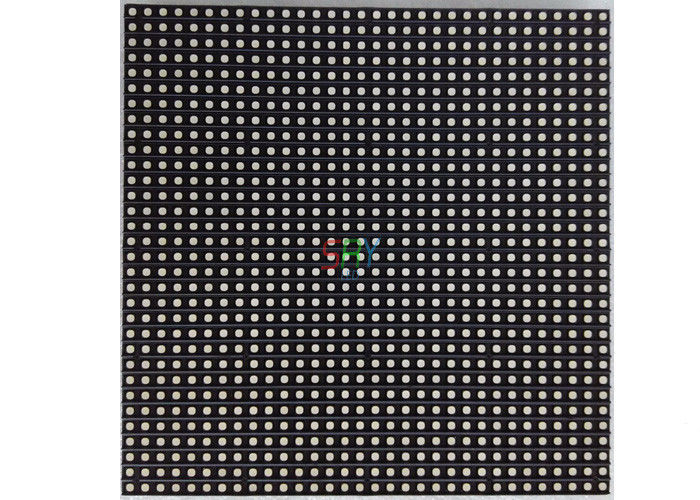

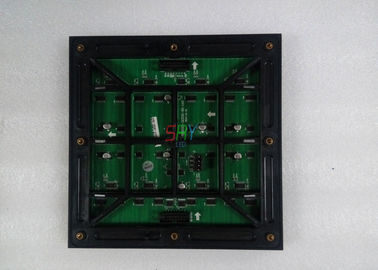

Module Pictures:
